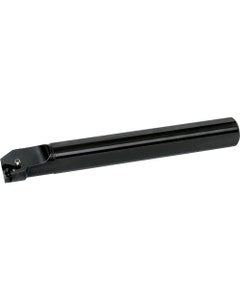

S16MPTUNR1620 Right-Hand, Negative Rake, Boring Bar
Item #: KY96THC08054
Brand: Kyocera Precision Tools
Model #: THC08054
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 150 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 150 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 34 mm |
| Rake Angle Radial (GAMF) | -18 Degrees |
| Shank Height (H) | 15 mm |
| Series/List # | GPBB |
| Shank Length (LS) | 116 mm |
| Body Material | Steel |
| Functional Width (WF) | 11 mm |
| Style | S...PTUN16 |
| Master Insert Identification (MIID) | | TNMG33 | TNGG33 | TNGA33 | TNMM33 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 20 mm |
| Weight of Item (WT) | 0.5527 |
