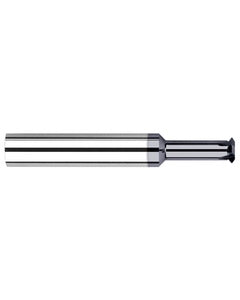

Thread Mill; #4 × 3/16″ Shank Dia. × 2″ OAL ; Carbide ; AlTiN Nano
Item #: GE90771710C6
Brand: Harvey Tool
Model #: 771710-C6
| Product Specifications | |
|---|---|
| Thread Size | #4 |
| Threads per Inch Maximum (TPIX) | 56 |
| Thread Standard | UN |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Flute Type | Spiral |
| Cutting Diameter (DC) | 0.08″ |
| Measurement Type | Inch |
| Functional Length (LF) | 5/16″ |
| Tool Type | Single Form |
| Overall Length (OAL) | 2″ |
| Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Flute Count (NOF) | 3 |
| Body Material | Carbide |
| Shank Type | Round |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | AlTiN Nano |
| Thread Form Type (THFT) | UN60 |
| Threads per Inch Minimum (TPIN) | 32 |
