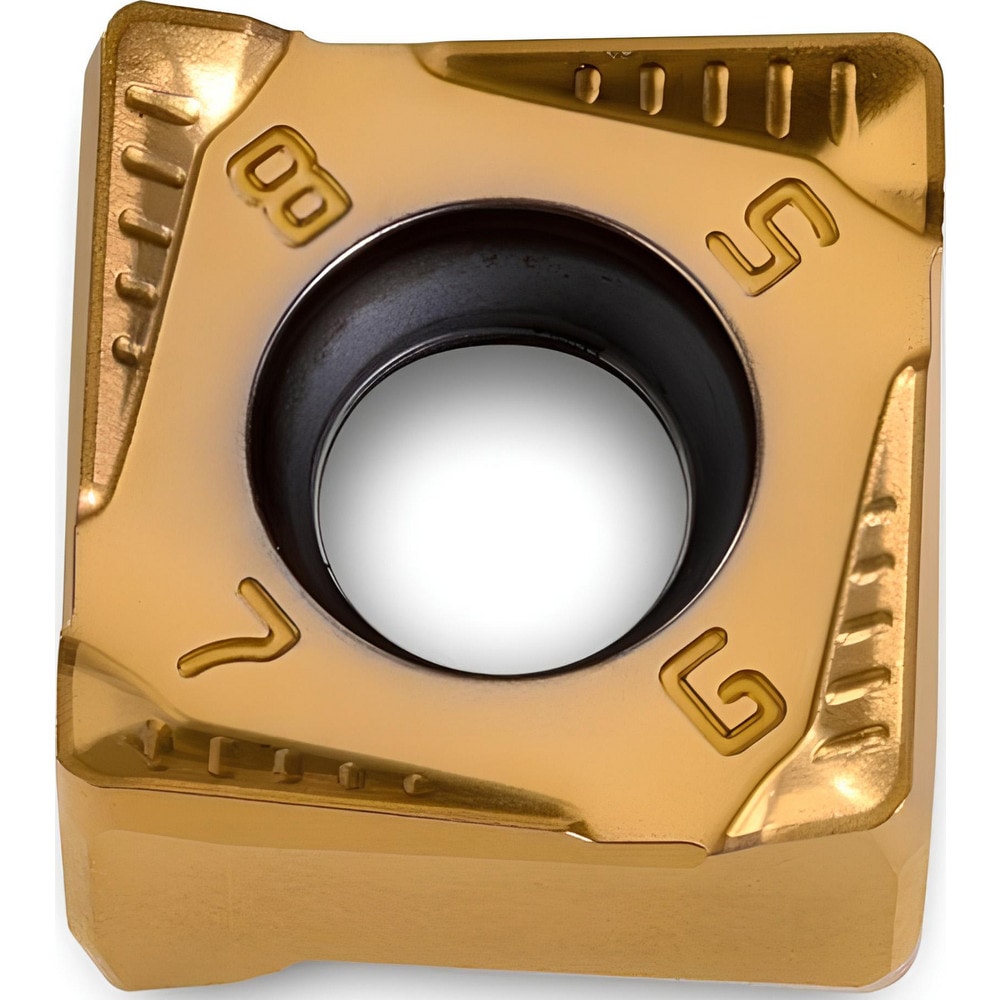

Brand: Ingersoll Cutting Tools / Part #: 6318015
Item #: 67312033
Brand: Ingersoll Cutting Tools
Model #: 6318015
Product Specifications
| Insert Style | SQGU |
| Insert Size Code | 120608 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2510 |
| Inscribed Circle (Decimal Inch) | 0.4800 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | SQGU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3300 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SQGU120608R-MM |
| Manufacturers Catalog Number | SQGU120608R-MM IN2510 |
| Cutter Series Compatibility | DJ6G; DJ5G |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Shape | Square |
| Length of Cut (mm) | 8.3800 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4800 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3190 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4800 |
