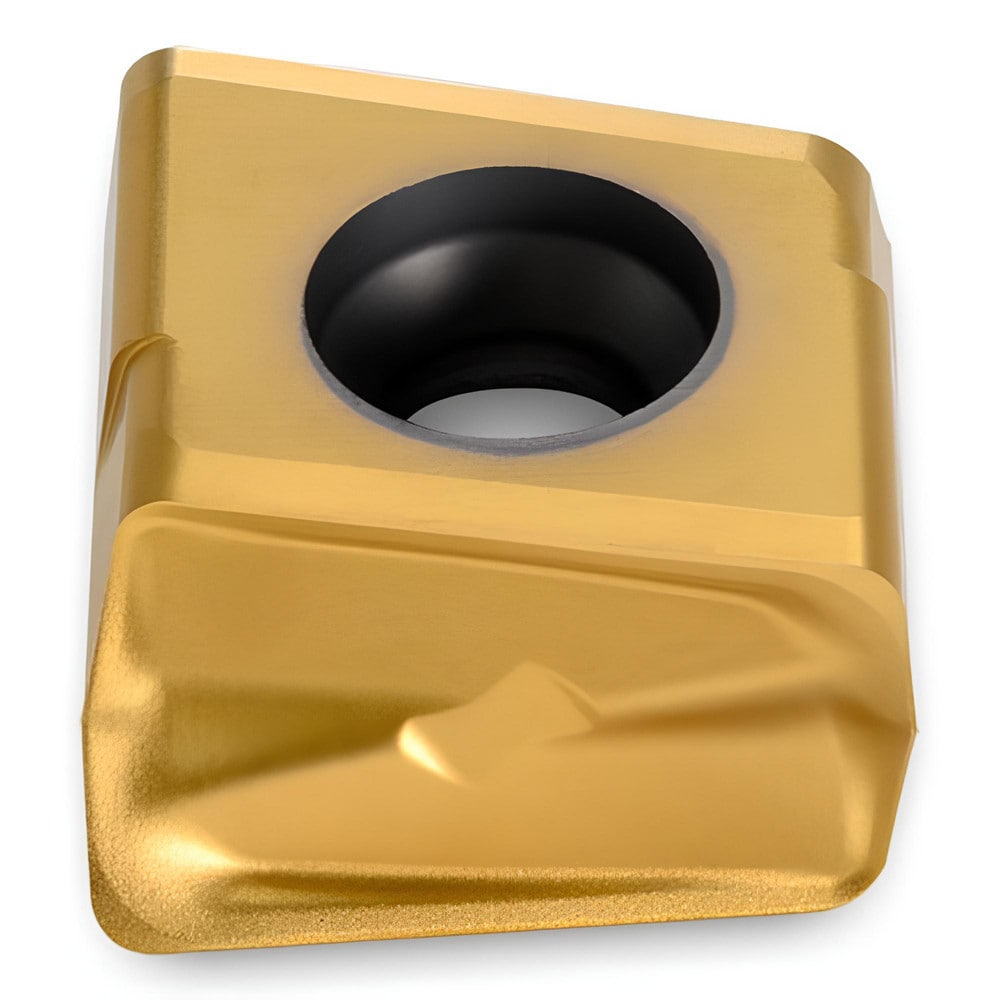

Brand: Ingersoll Cutting Tools / Part #: 2927781
Item #: 67322974
Brand: Ingersoll Cutting Tools
Model #: 2927781
Product Specifications
| Insert Style | CGM |
| Insert Size Code | 313 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2530 |
| Inscribed Circle (Decimal Inch) | 0.4090 |
| Corner Radius (Inch) | 1/8 |
| Insert Hand | Right Hand |
| Series | CGM |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 11.00 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | CGM313R004-M K |
| Rake Angle | 30.000 |
| Manufacturers Catalog Number | CGM313R004-M K IN2530 |
| Cutter Series Compatibility | EJ6C; EJ5C; 1EJ5C |
| Chip Breaker | M |
| Cutting Direction | Right Hand |
| Shape | Rectangle |
| Length of Cut (mm) | 11.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Length | 11.00 |
| Width (Decimal Inch - 4 Decimals) | 0.4090 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2360 |
| Multi-Use Tool | No |
