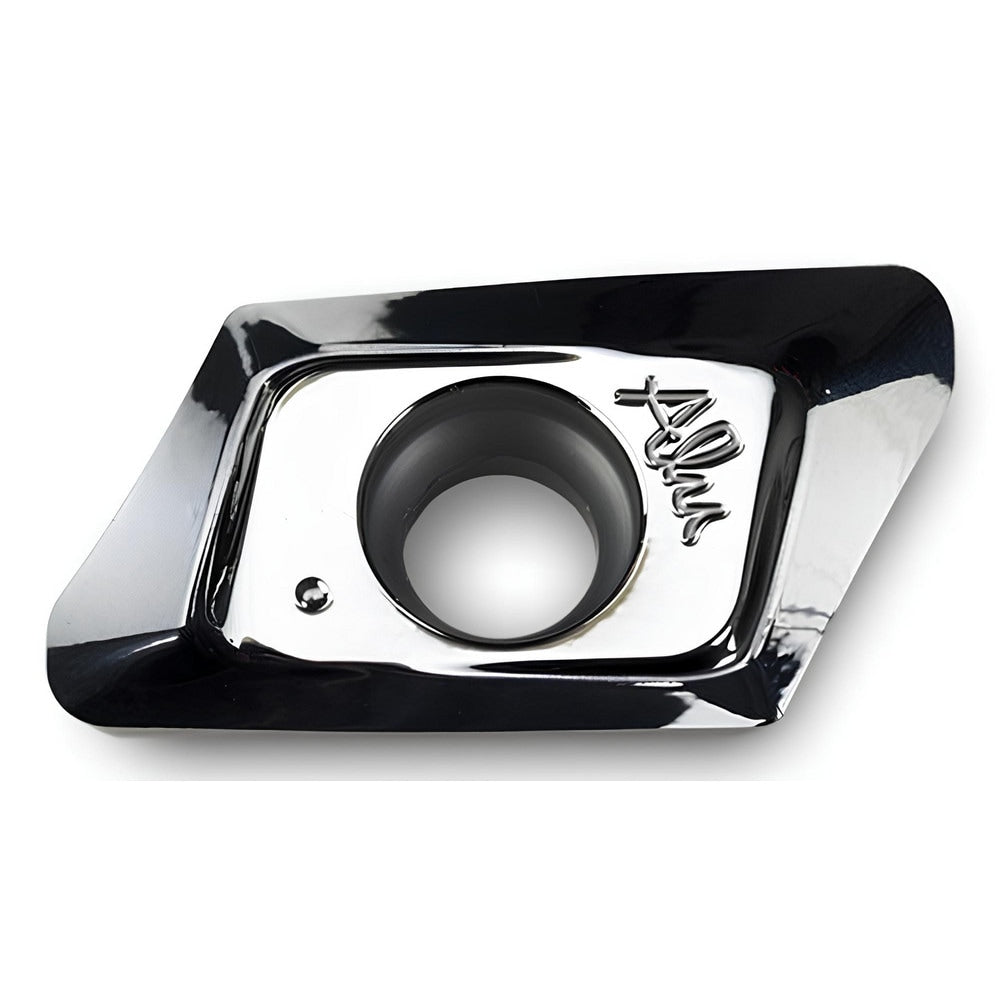

Brand: Ingersoll Cutting Tools / Part #: 6120032
Item #: 67311662
Brand: Ingersoll Cutting Tools
Model #: 6120032
Product Specifications
| Insert Style | XEVT |
| Insert Size Code | 160516 |
| Insert Material | Carbide |
| Manufacturer Grade | IN10K |
| Inscribed Circle (Decimal Inch) | 0.4410 |
| Corner Radius (Inch) | 1/16 |
| Insert Hand | Right Hand |
| Series | XEVT |
| Coating Process | Uncoated |
| Maximum Depth of Cut (mm) | 16.00 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Ansi Code | XEVT160516FR-P |
| Rake Angle | 20.000 |
| Manufacturers Catalog Number | XEVT160516FR-P IN10K |
| Cutter Series Compatibility | 1AX2K; AX2K |
| Chip Breaker | P |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 16.0000 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Width (Decimal Inch - 4 Decimals) | 0.4410 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2170 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.8350 |
