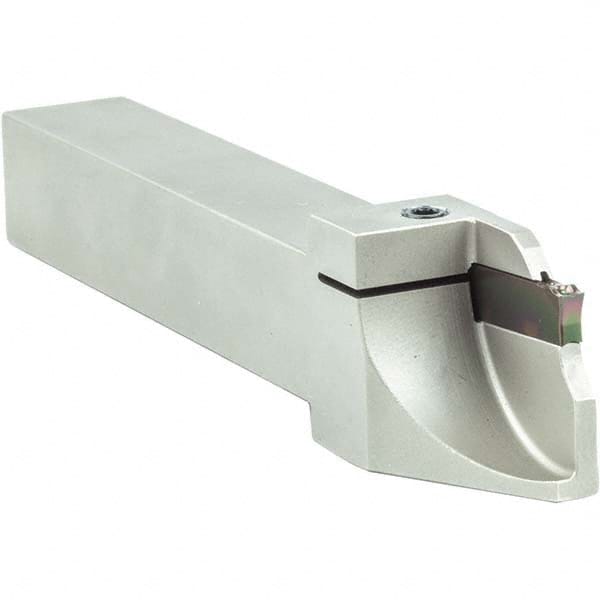

Arno - 0.512" Max Depth, 0.079 to 1.024" Width, External Right Hand Indexable Grooving/Cutoff Toolholder
Item #: 11430469
Brand: Arno
Model #: 501742
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Minimum Groove Width (mm) | 2.01 |
| Maximum Groove Width (Decimal Inch) | 1.0240 |
| Overall Length (Decimal Inch) | 4.3310 |
| Series | SA Parting / Grooving |
| Toolholder Style | HSA Monoblock |
| Insert Compatibility | SA 24-20 |
| Shank Height (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4720 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Head Length (Decimal Inch) | 0.5120 |
| Manufacturers Catalog Number | HSA 1212UD-R-SA2402-26-ACS1 |
