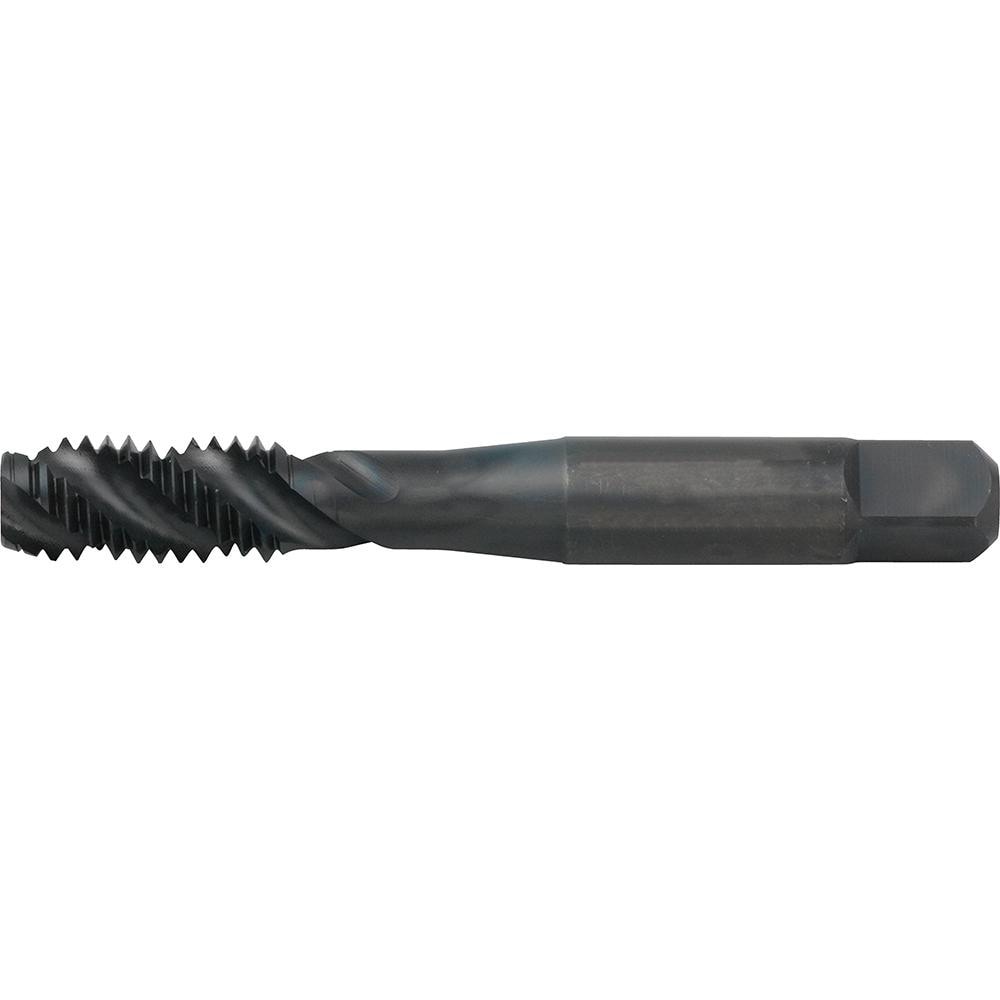

Brand: Widia / Part #: 5364747

Brand: Widia / Part #: 5364747


Item #: 97464176
Brand: Widia
Model #: 5364747

Product Specifications

Thread Size (Inch) 1-1/4-12
Chamfer Modified Bottoming
Thread Limit H5
Class Of Fit 2B
Number Of Flutes 4
Material High Speed Steel
Threads per Inch 12
Thread Direction Right Hand
Flute Direction Right Hand
Coating/Finish Oxide
Coolant Through No
Thread Length (Decimal Inch) 1.7100
Overall Length (Decimal Inch) 5.7500
Thread Depth (Decimal Inch) 2.5600
Thread Pitch (Decimal Inch) 0.0833
Thread Standard UNF
Material Grade WP49EG
Shank Diameter (Decimal Inch) 1.0210
Square Size (Decimal Inch) 0.7630
Material Application Stainless Steel; Cast Iron; Steel
Series VTSFT
$ 356.51
