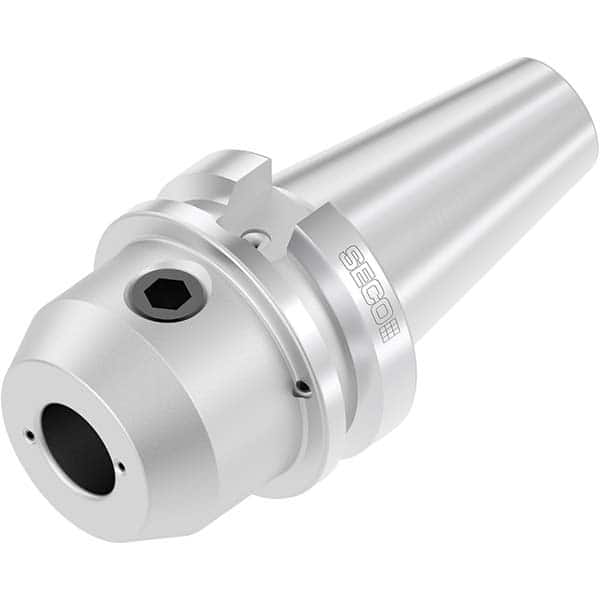

Seco - End Mill Holders & Adapters Shank Type: Taper Shank Taper Size: BT40
Item #: 18141796
Brand: Seco
Model #: 10007214
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
Product Specifications
End Mill Holders & Adapters; Shank Type: Taper Shank ; Taper Size: BT40 ; Nose Diameter (mm): 48.00 ; Projection (mm): 93.000 ; Through Coolant: Yes ; Clamping Depth (mm): 46.00
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Nose Diameter (mm) | 48.00 |
| Projection (mm) | 93.000 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 46.00 |
| Overall Length (mm) | 185.4000 |
| Coolant Type | Internal |
| Projection (mm) | 93.000 |
| Hole Diameter (Decimal Inch) | 16.0000 |
| Nose Diameter (mm) | 48.00 |
| Clamping Depth (mm) | 46.00 |
| Through Coolant | Yes |
| Taper Size | BT40 |
| Shank Type | Taper Shank |
