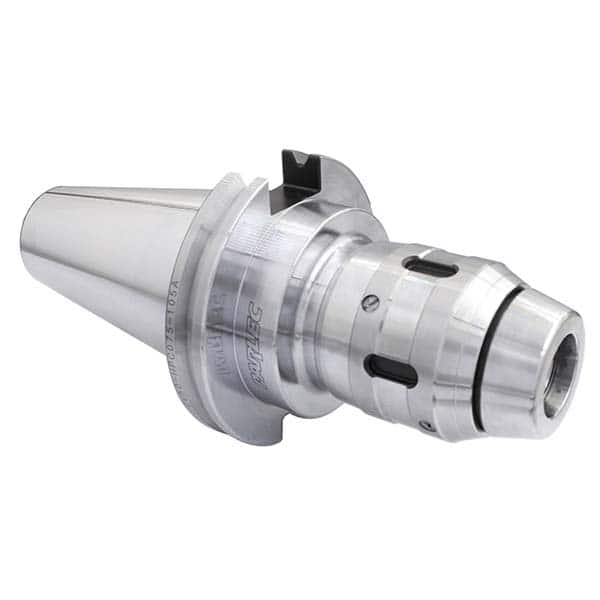

Parlec - Milling Chucks Taper Size: CAT TF50 (Taper Face) Shank Type: Dual Contact Taper
Item #: 10339588
Brand: Parlec
Model #: 74205007
Product Specifications
Milling Chucks; Taper Size: CAT TF50 (Taper Face) ; Shank Type: Dual Contact Taper ; Hole Diameter (Inch): 1 ; Nose Diameter (Decimal Inch): 2.4400 ; Projection (Decimal Inch): 4.1300 ; Through Coolant: Yes
| Taper Size | CAT TF50 (Taper Face) |
| Shank Type | Dual Contact Taper |
| Hole Diameter (Inch) | 1 |
| Nose Diameter (Decimal Inch) | 2.4400 |
| Projection (Decimal Inch) | 4.1300 |
| Through Coolant | Yes |
| TIR (mm) | 0.0030 |
| Clamping Depth (Decimal Inch) | 1.9700 |
| Overall Length (Decimal Inch) | 8.13000 |
| Balanced to (RPM) | 8000 |
| TIR (Decimal Inch) | 0.000100 |
| Coolant Type | Through-Spindle |
