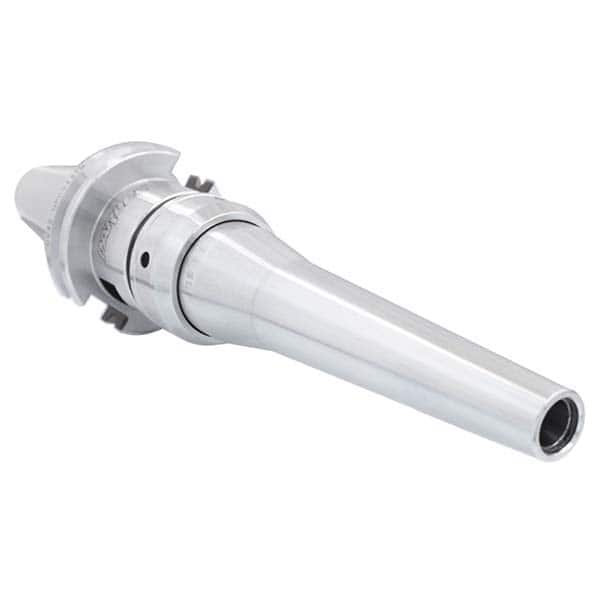

Parlec - Milling Chucks Taper Size: BT40 Shank Type: Taper Shank
Item #: 10340842
Brand: Parlec
Model #: 74204135
Product Specifications
Milling Chucks; Taper Size: BT40 ; Shank Type: Taper Shank ; Hole Diameter (Inch): 0.125 ; Nose Diameter (Decimal Inch): 0.3500 ; Projection (Decimal Inch): 5.3100 ; Through Coolant: Yes
| Taper Size | BT40 |
| Shank Type | Taper Shank |
| Hole Diameter (Inch) | 0.125 |
| Nose Diameter (Decimal Inch) | 0.3500 |
| Projection (Decimal Inch) | 5.3100 |
| Through Coolant | Yes |
| TIR (mm) | 0.0030 |
| Clamping Depth (Decimal Inch) | 1.9700 |
| Overall Length (Decimal Inch) | 7.89000 |
| Balanced to (RPM) | 15000 |
| TIR (Decimal Inch) | 0.000100 |
| Coolant Type | Through-Spindle |
