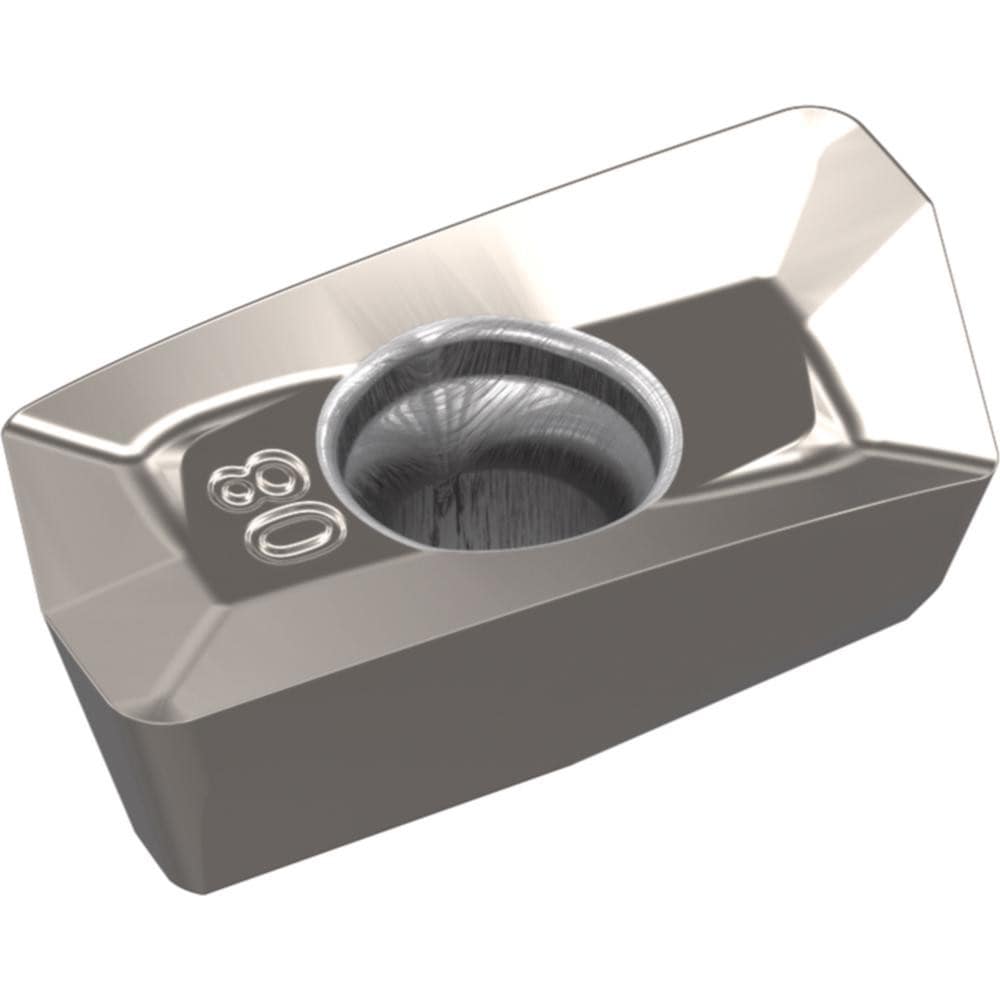

Brand: Widia / Part #: 6055635
Item #: 94014214
Brand: Widia
Model #: 6055635
Product Specifications
| Insert Style | XDCT |
| Insert Size Code | 1104 |
| Insert Size | 11 |
| Insert Material | Carbide |
| Manufacturer Grade | WN25PM |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.2720 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Right Hand |
| Relief Angle | 15.000 |
| Series | VSM11 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.0000 |
| Hole Diameter (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (Decimal Inch) | 0.4620 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | XDCT1103RALP |
| Iso Code | XDCT110412PDFRALP |
| Manufacturers Catalog Number | XDCT1103RALP |
| Cutter Series Compatibility | VSM11 XDCT |
| Chip Breaker | ALP |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiB2 |
| Included Angle Degree | 75 |
| Width (Decimal Inch - 4 Decimals) | 0.2720 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1570 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5290 |
