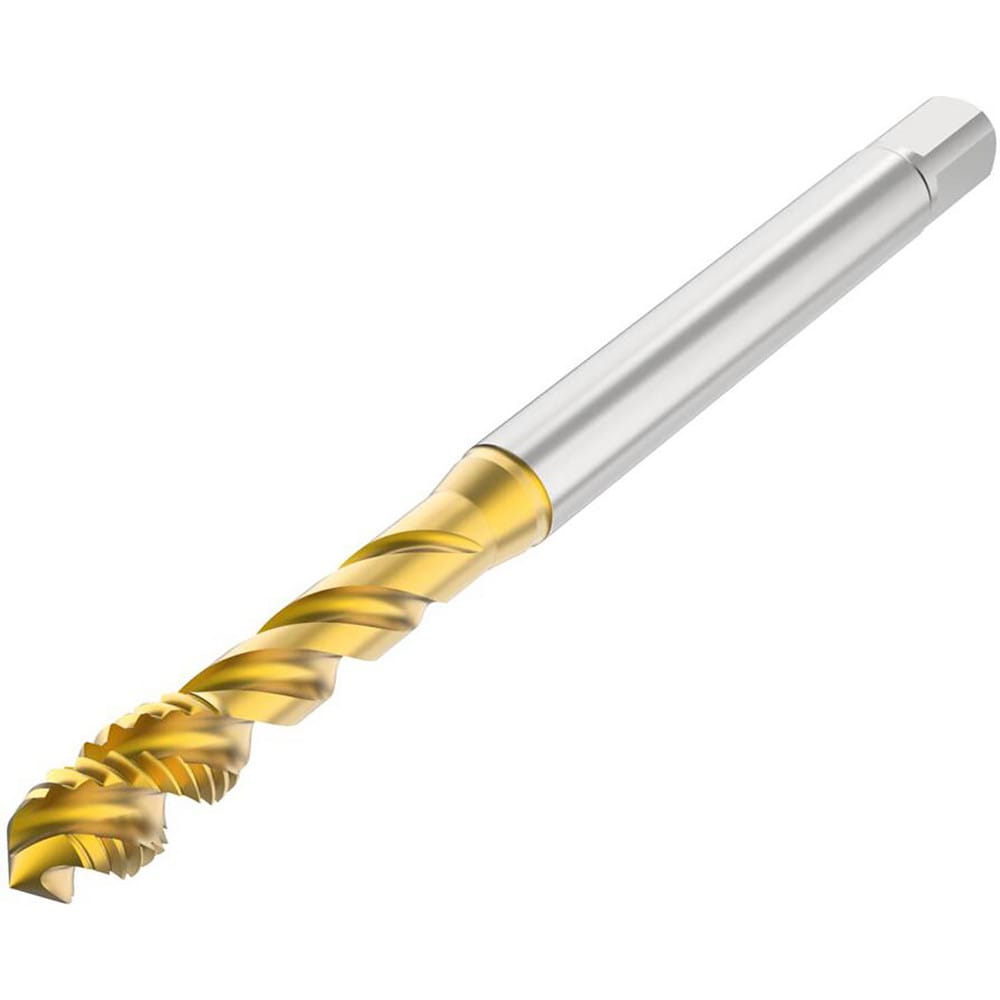

Brand: Seco / Part #: 10139130

Brand: Seco / Part #: 10139130


Item #: 98738305
Brand: Seco
Model #: 10139130

Product Specifications

Thread Size (mm) M1.1
Chamfer Modified Bottoming
Class Of Fit 4H
Number Of Flutes 2
Material HSS-PM
Threads per Inch 102
Thread Direction Right Hand
Flute Direction Right Hand
Coating/Finish TN
Thread Depth (mm) 6.00
Coolant Through No
Thread Length (mm) 6.00
Overall Length (mm) 41.0000
Thread Pitch (Decimal Inch) 0.0098
Thread Pitch (mm) 0.25
Thread Standard Metric
Helix Angle 40.00
Oversize No
Application Blind Hole Threading
Shank Diameter (mm) 2.5000
Neck Length (mm) 7.00
Tapping Depth (mm) 13.00
Flute Style Spiral
Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Series T32
Shank Length (mm) 28.000
$ 149.49

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
