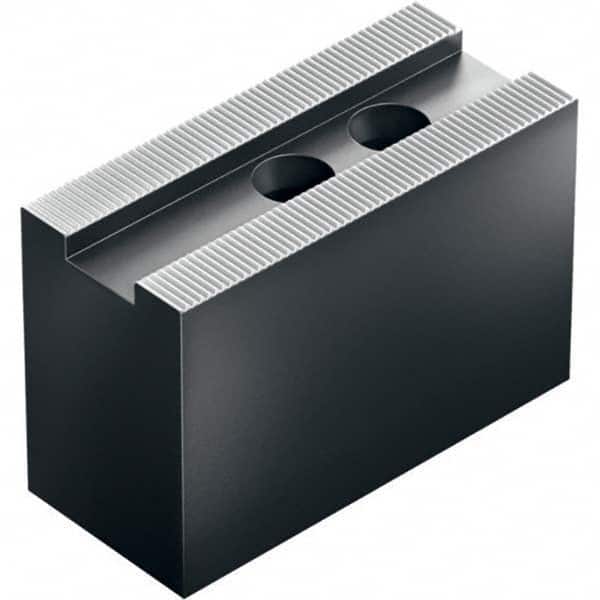

Schunk - Soft Lathe Chuck Jaws Jaw Type: Square Material: Steel
Item #: 55756548
Brand: Schunk
Model #: 120107
Features and Benefits
Square end jaws are blanks that can be machined to final size.
Product Specifications
Soft Lathe Chuck Jaws; Jaw Type: Square ; Material: Steel ; Jaw Interface Type: 3/32" x 90 Serrated ; Maximum Compatible Chuck Diameter (Inch): 30 ; Maximum Compatible Chuck Diameter (mm): 800.00 ; Minimum Compatible Chuck Diameter (mm): 400.00
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 3/32" x 90 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 30 |
| Maximum Compatible Chuck Diameter (mm) | 800.00 |
| Minimum Compatible Chuck Diameter (mm) | 400.00 |
| Minimum Compatible Chuck Diameter (Inch) | 15 |
| Overall Height (mm) | 90.00 |
| Groove Width (mm) | 25.50 |
| Distance Between Mount Hole Centers (mm) | 35.00 |
| Tongue Width (Decimal Inch) | 0.7874 |
| Jaw End Shape | Square |
