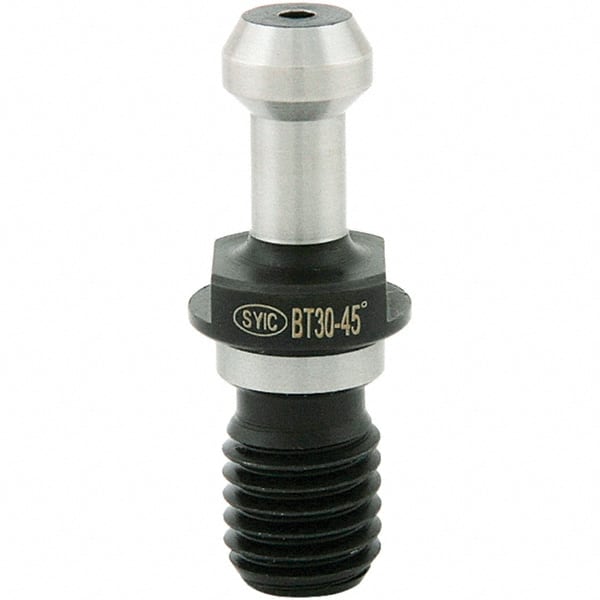

Techniks - Retention Knobs Type: Standard Taper Size: BT30
Item #: 86518073
Brand: Techniks
Model #: 17801
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
Product Specifications
Retention Knobs; Type: Standard ; Taper Size: BT30 ; Thread Size: M12 ; Angle Radius: 45.00 ; Knob Diameter (mm): 11.00 ; Through Coolant: No
| Type | Standard |
| Taper Size | BT30 |
| Thread Size | M12 |
| Angle Radius | 45.00 |
| Knob Diameter (mm) | 11.00 |
| Through Coolant | No |
| Overall Length (Decimal Inch) | 1.6929 |
