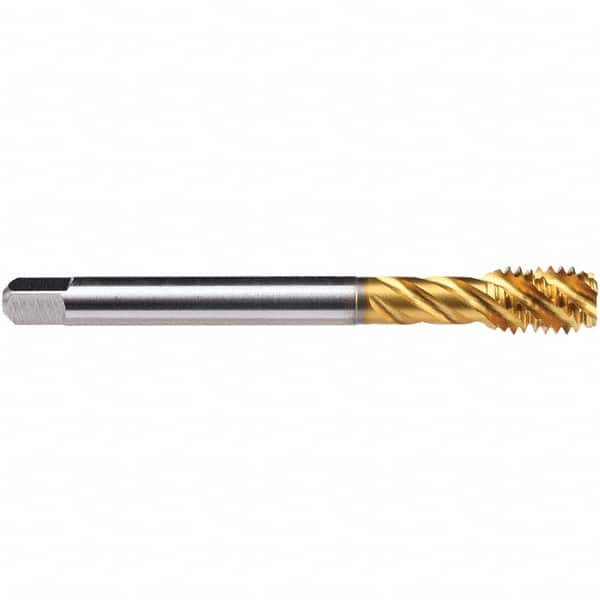

Emuge - Spiral Point STI Taps Thread Size (Inch): 5/8-18 Class of Fit: 3B
Item #: 96225586
Brand: Emuge
Model #: CU513710.5645
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Product Specifications
Spiral Point STI Taps; Thread Size (Inch): 5/8-18 ; Class of Fit: 3B ; Thread Limit: H3 ; Number of Flutes: 5 ; Chamfer: Bottoming ; Finish/Coating: TiN
| Thread Size (Inch) | 5/8-18 |
| Class of Fit | 3B |
| Thread Limit | H3 |
| Number of Flutes | 5 |
| Chamfer | Bottoming |
| Finish/Coating | TiN |
| Overall Length (Decimal Inch) | 4.3310 |
| Thread Standard | UNF |
| Material | Cobalt |
| Thread Length (Decimal Inch) | 0.5556 |
| Shank Diameter (Decimal Inch) | 0.5420 |
| Square Size (Decimal Inch) | 0.5420 |
| Series/List | CU513710 |
