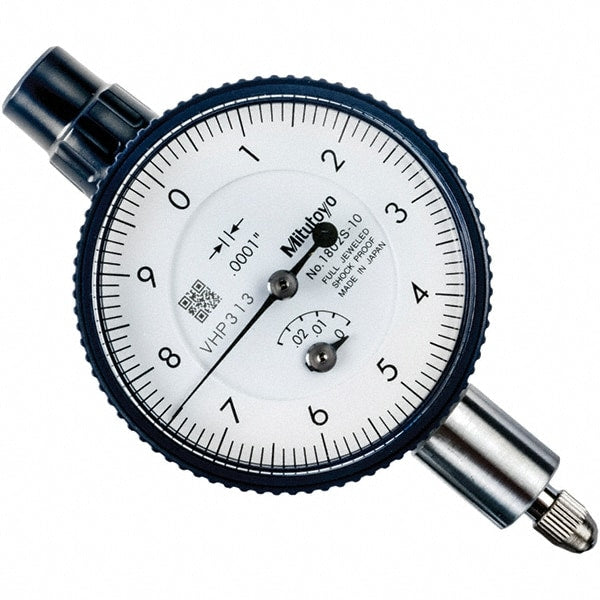

Brand: Mitutoyo / Part #: 1802A-10
Item #: 93279990
Brand: Mitutoyo
Model #: 1802A-10
Product Specifications
| Accuracy (Decimal Inch) | 0.000100 |
| Back Type | Flat |
| Bearing Type | Jeweled |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Decimal Inch) | 0.0250 |
| Dial Graduation (Decimal Inch) | 0.000100 |
| Dial Reading | 0-10 |
| Measuring Force (N) | 1.40 |
| Dial Diameter (mm) | 40.00 |
| Stem Diameter (Inch) | 3/8 |
| Stem Length (mm) | 13.30 |
| Overall Length (mm) | 75.90 |
| Dial Color | White |
| Thread Size | #4-48 |
| Revolution Counter | Yes |
| Features | Shockproof |
| Includes | Green Limit Markers; Plastic Case |
| Standards | ANSI/AGD |
| AGDGpNo | 0 |
| Range Per Revolution (Decimal Inch) | 0.0100 |
