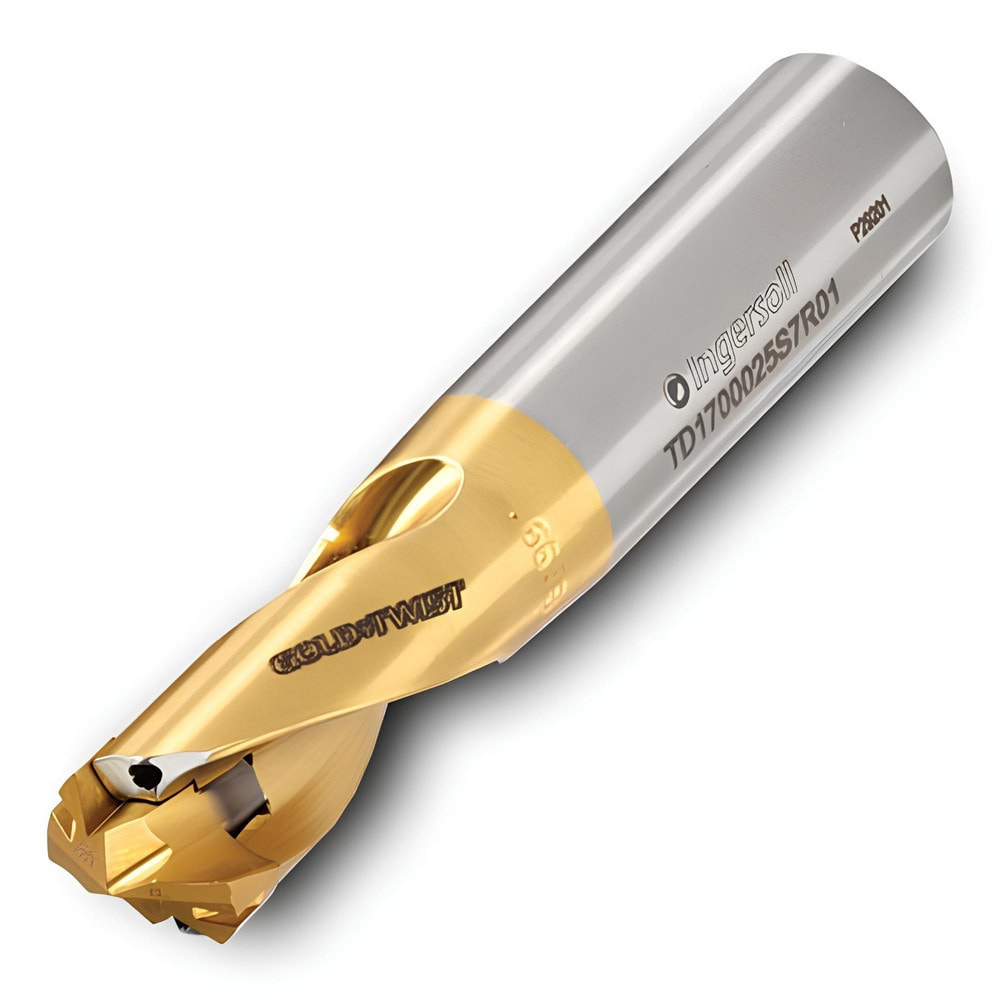

Brand: Ingersoll Cutting Tools / Part #: 3212773
Item #: 42564435
Brand: Ingersoll Cutting Tools
Model #: 3212773
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Diameter (Decimal Inch) | 0.8228 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.1800 |
| Shank Type | Cylindrical |
| Insert Style | TPA; TNA; TPC; TMA; TKA; TPF |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Seat Size | 20 |
| Tool Material | Steel |
| Compatible Insert Style | TPA; TNA; TPC; TMA; TKA; TPF |
| Compatible Insert Size Code | 20.. |
| Overall Length (Decimal Inch) | 4.1700 |
| Series | TD |
| Toolholder Style | TD |
| Flute Length (Decimal Inch) | 4.1700 |
| Body Length (Decimal Inch) | 4.1700 |
| Shank Length (Decimal Inch) | 2.2000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Coating Classification | PVD |
