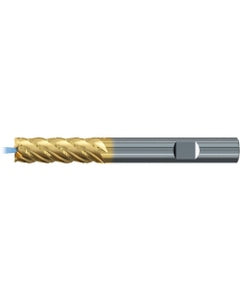

Square End Mill; 1/2″ Dia. × 1-1/2″ LOC × 1/2″ Shank Dia. × 3-3/4″ OAL ; 5 FL ; Carbide ; TiAlN+TiN ; Series 2579TZ
Item #: ER452579TZ0500
Brand: EMUGE-FRANKEN
Model #: 2579TZ.0500
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Application | | Roughing | Finishing | |
| Depth of Cut Maximum (APMX) | 1-1/2″ |
| Tool Type | TiNox-Cut 3xD |
| Overall Length (OAL) | 3-3/4″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5″ |
| Coating | TiAlN+TiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 5 |
| Series/List # | 2579TZ |
| Shank Type | HB |
