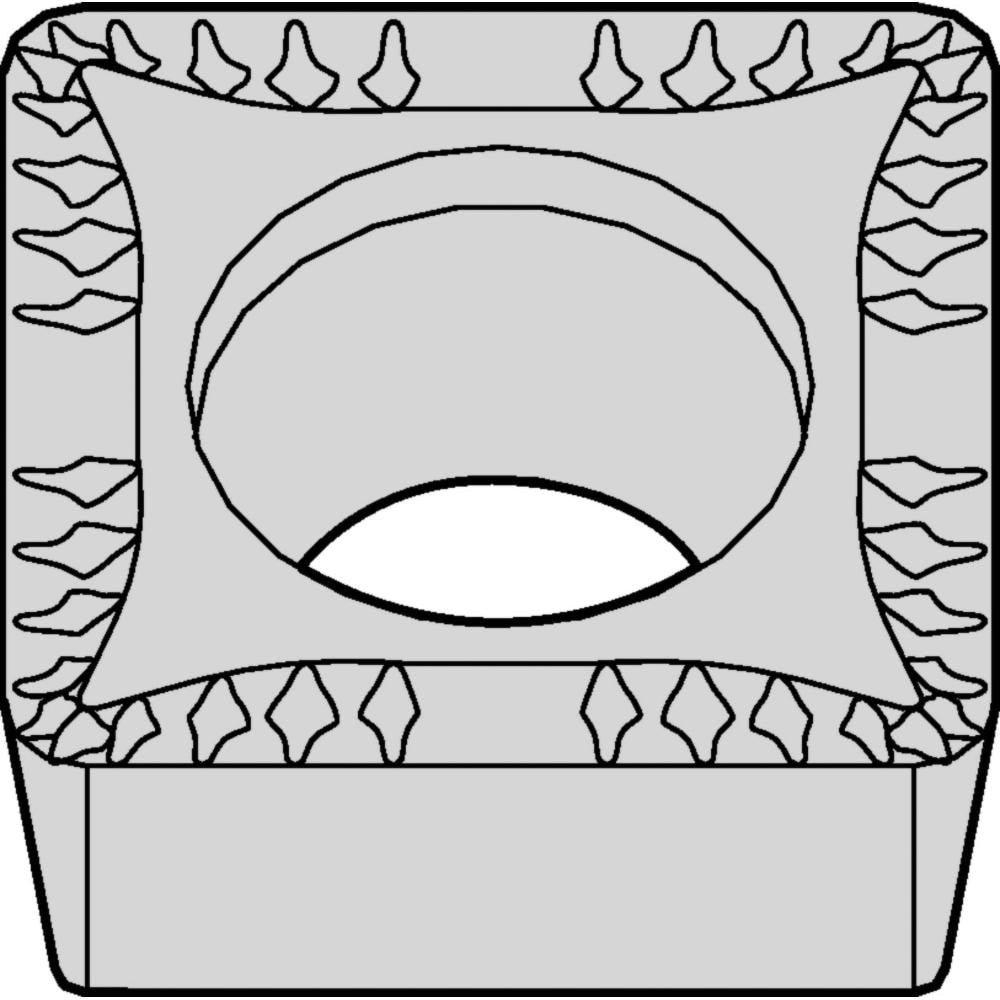

Brand: Widia / Part #: 6868882
Item #: 94067790
Brand: Widia
Model #: 6868882
Product Specifications
| Insert Style | SCMT |
| Insert Shape Code | S |
| Insert Size Code | 432 |
| Insert Shape | Square |
| Coating/Finish | AlTiN |
| Manufacturer Grade | WU25PT |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | C |
| Tolerance Code | M |
| Included Angle | 90.00 |
| Relief Angle | 7.000 |
| Series | SCMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | SCMT432MU |
| Iso Code | SCMT120408MU |
| Manufacturers Catalog Number | SCMT432MU |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | MU |
| Style | SCMT |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
