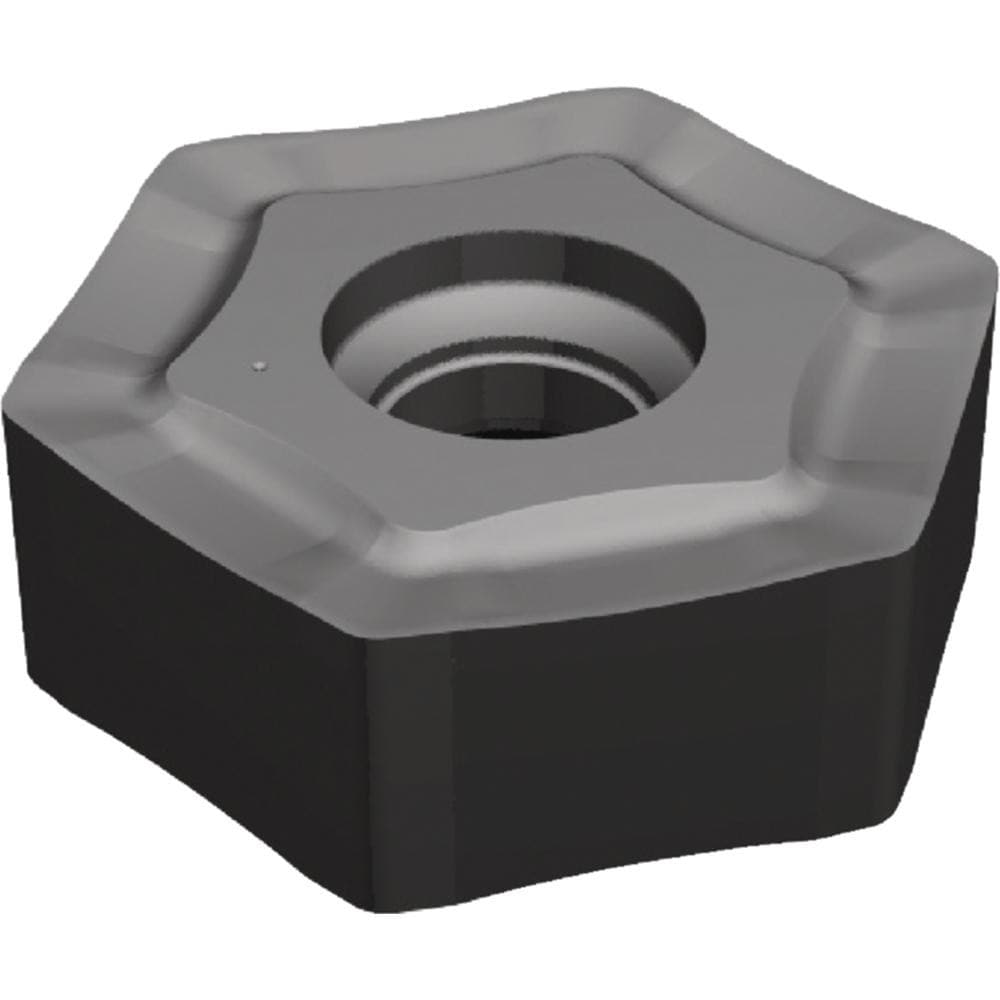

Brand: Widia / Part #: 6495106
Item #: 94061074
Brand: Widia
Model #: 6495106
Product Specifications
| Insert Style | HNMU |
| Insert Size Code | 1107 |
| Insert Size | 11 |
| Insert Material | Carbide |
| Width (Inch) | 3/4 |
| Manufacturer Grade | WK15CM |
| Length (Inch) | 3/4 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | M1200 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2283 |
| Maximum Depth of Cut (Decimal Inch) | 0.4233 |
| Number Of Cutting Edges | 12 |
| Insert Shape | Hexagon |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | HNMU110710ZNSNMM |
| Iso Code | HNMU110710ZNSNMM |
| Manufacturers Catalog Number | HNMU110710ZNSNMM |
| Cutter Series Compatibility | M1200 MAX SCREW CLAMP HNMU |
| Chip Breaker | MM |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Hexagon |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2724 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7500 |
