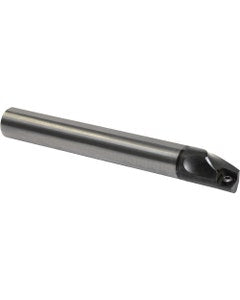

E25TSCLCL0927A Left-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC13672
Brand: Kyocera Precision Tools
Model #: THC13672
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 300 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 300 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 38 mm |
| Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Height (H) | 24 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 262 mm |
| Style | E...SCLC-A |
| Functional Width (WF) | 13.5 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | | CCGT325 | CCMT325 | CCET325 | CCGW325 | CCMW325 | |
| Weight of Item (WT) | 4.1637 |
| Minimum Bore Diameter (DMIN) | 27 mm |
