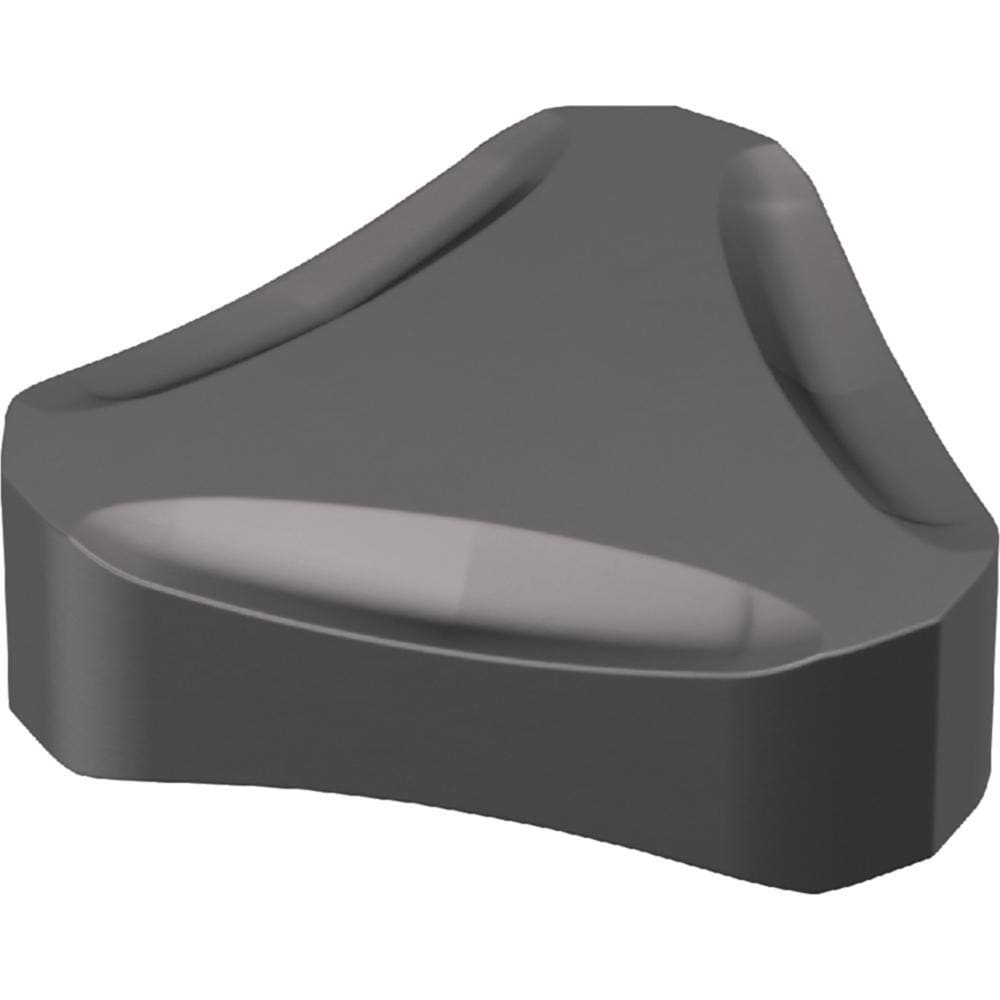

Brand: Widia / Part #: 6008686
Item #: 94016078
Brand: Widia
Model #: 6008686
Product Specifications
| Insert Style | TNHF |
| Insert Size Code | 1204 |
| Insert Size | 12 |
| Insert Material | Carbide |
| Manufacturer Grade | WK15CM |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | TNHF |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Number Of Cutting Edges | 6 |
| Insert Shape | Triangle |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | TNHF1204ANCA |
| Iso Code | TNHF1204ANCA |
| Manufacturers Catalog Number | TNHF1204ANCA |
| Cutter Series Compatibility | CIP MILLING |
| Chip Breaker | CA |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Triangle |
| Length of Cut (mm) | 22.0000 |
| Insert Holding Method | Clamp |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 60 |
| Length | 22.00 |
| Width (Decimal Inch - 4 Decimals) | 0.8660 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.8660 |
