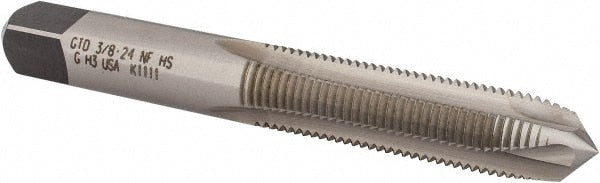

Brand: Widia / Part #: 2750067
Item #: 70745187
Brand: Widia
Model #: 2750067
Product Specifications
| Thread Size (Inch) | 3/8-24 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | H3 |
| Class Of Fit | 2B/3B |
| Coating/Finish | Uncoated |
| Threads per Inch | 24 |
| Material | High Speed Steel |
| Coolant Through | Yes |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 1.1250 |
| Thread Pitch (Decimal Inch) | 0.0417 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 1.1250 |
| Overall Length (Decimal Inch) | 2.9370 |
| Cnc Shank | Yes |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Application | Through-Hole Threading |
| Tapping Depth (Decimal Inch) | 1.1250 |
| Square Length (Decimal Inch) | 0.4375 |
| Square Size (Decimal Inch) | 0.2860 |
| Material Application | Non-Ferrous Metal |
| Series | 5301/2301 |
| Style | Plug |
