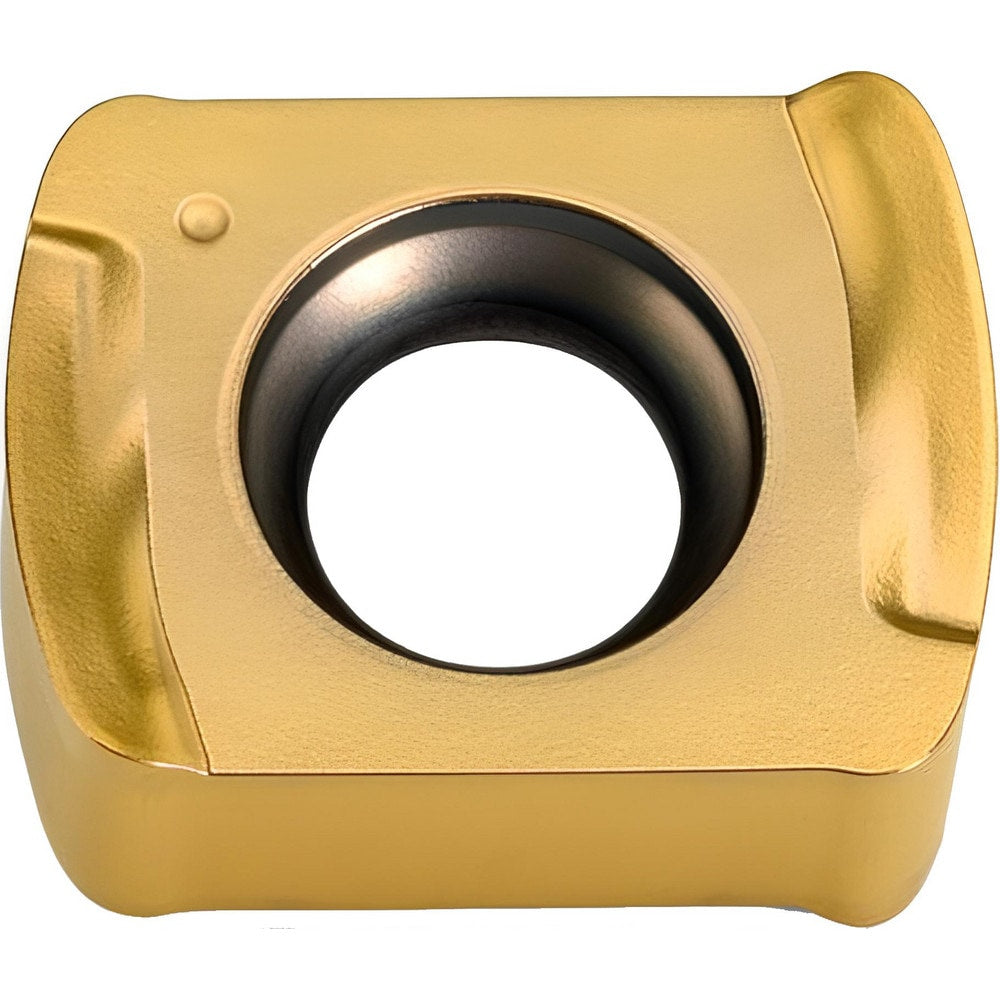

Brand: Ingersoll Cutting Tools / Part #: 6187871
Item #: 67306514
Brand: Ingersoll Cutting Tools
Model #: 6187871
Product Specifications
| Insert Style | UNLU |
| Insert Size Code | 1105 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2504 |
| Inscribed Circle (mm) | 11.00 |
| Corner Radius (Decimal Inch) | 0.0500 |
| Insert Hand | Right Hand |
| Series | UNLU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5750 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | UNLU1105M0TR |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | UNLU1105M0TR IN2504 |
| Cutter Series Compatibility | 1TG1J; TG.J |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Rectangle |
| Length of Cut (mm) | 14.6100 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Width (Decimal Inch - 4 Decimals) | 0.4410 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2560 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5750 |
