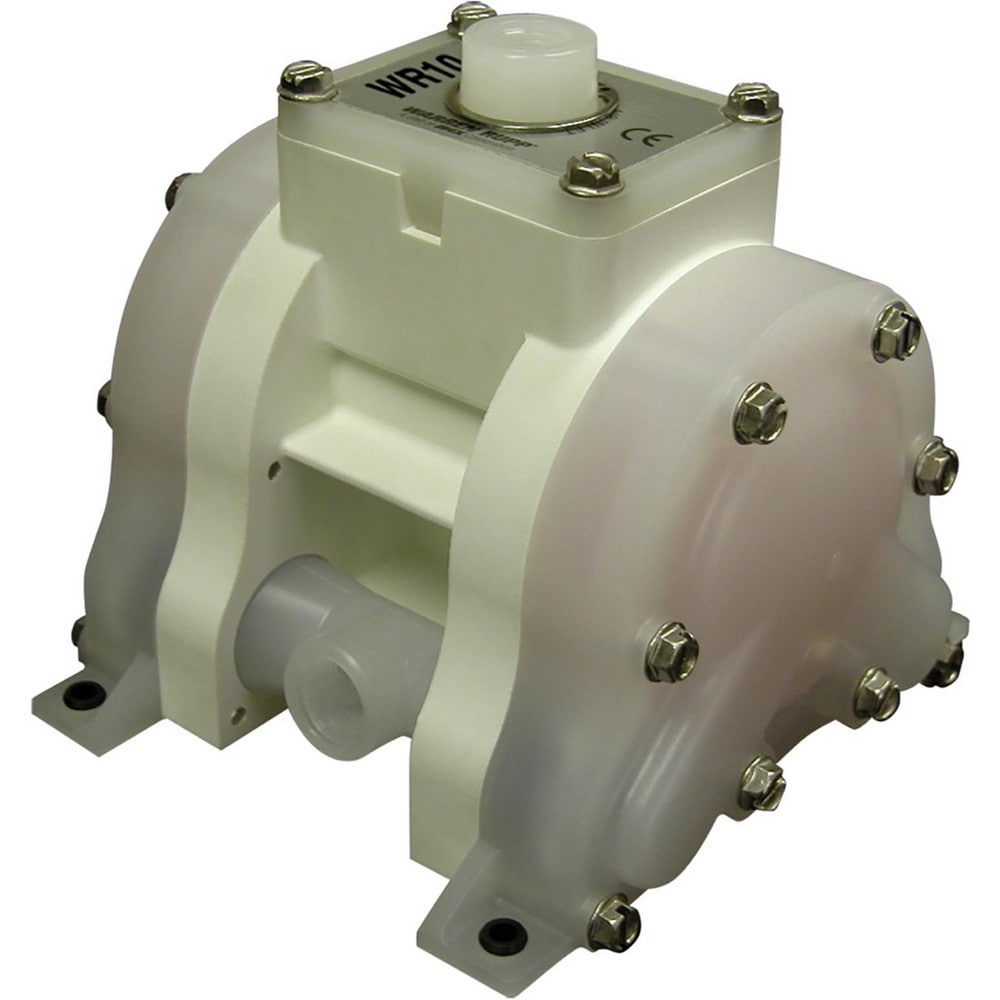

Air-Operated Diaphragm Pumps; Maximum Flow Rate (Gpm
Item #: 02366805
Brand: SandPIPER
Model #: WR10PP5BPP9.
Product Specifications
| Maximum Flow Rate (Gpm - 2 Decimals) | 6.80 |
| Maximum Working Pressure | 100.000 |
| Thread Type | NPT |
| Inlet Size | 0.375 in |
| Cubic Feet Per Minute | 5 SCFM |
| Diaphragm Material | PTFE |
| Ball Material | PTFE |
| Check Seat Material | Polypropylene |
| Height (Inch) | 5.32 |
| Width (Inch) | 5.66 |
| Length (Inch) | 5.72 |
| Port Type | NPT |
| Body Material | Polypropylene |
| Maximum Temperature (F) ( - 0 Decimals) | 180.000 |
| Maximum Solid Size (Inch) | 3/8 |
| Air Inlet Size (Inch) | 1/4 |
| Maximum Cubic Feet Per Minute (CFM) | 5.00 |
| UNSPSC Code | 40151548 |
