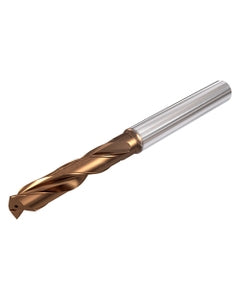

SCD 190-071-200 ACP5FL IC608
Item #: EH553420736
Brand: Iscar
Model #: 3420736
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 19 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 19 mm |
| Tool Type | solid carbide Drills |
| Coating | AlTiCrSiN |
| Grade | IC608 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Measurement Type | Metric |
| Application | | Drilling | |
| Usable Length (LU) | 71 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Length Chip Flute (LCF) | 101 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 153 mm |
| Number of Teeth | 2 |
| Flute Count (NOF) | 2 |
| Shank Length (LS) | 52 mm |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Body Material | Carbide |
