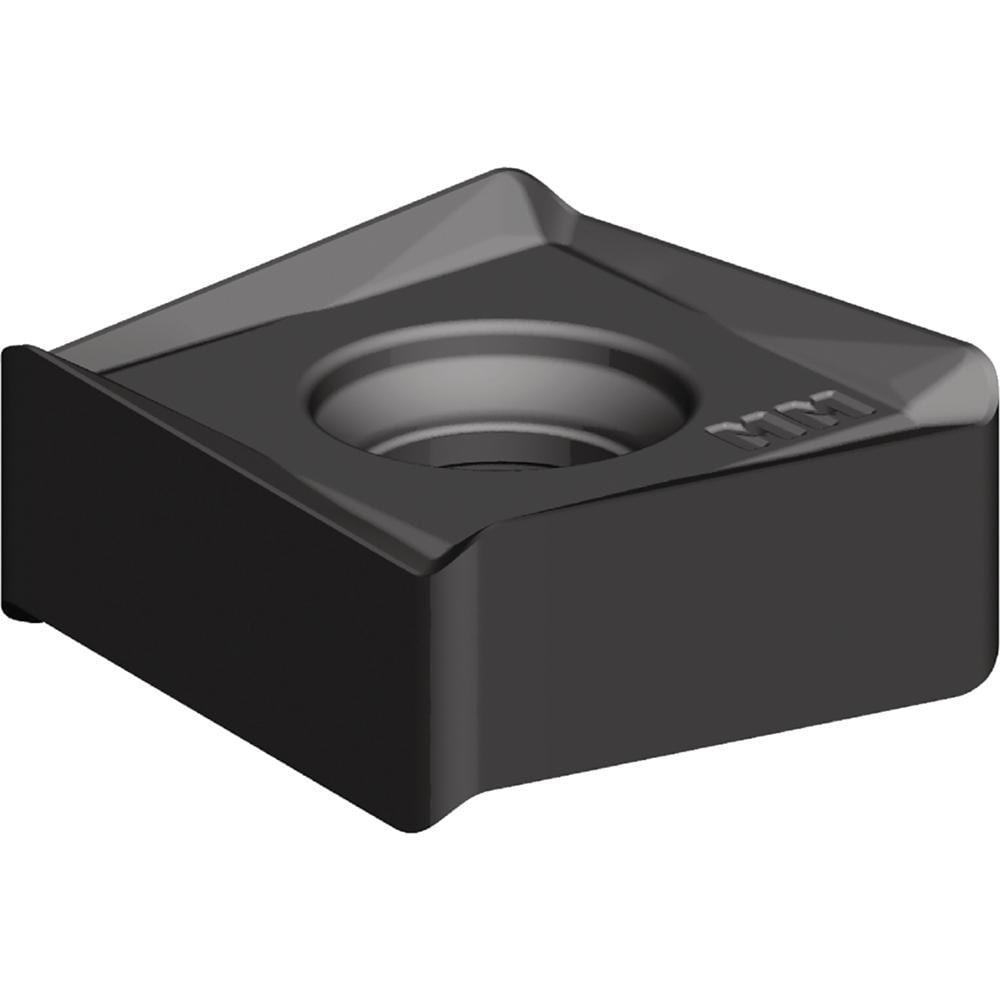

Brand: Widia / Part #: 6596400
Item #: 94108677
Brand: Widia
Model #: 6596400
Product Specifications
| Insert Style | SNHX |
| Insert Size Code | 120408 |
| Insert Size | 12 |
| Insert Material | Carbide |
| Manufacturer Grade | WU10PM |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Relief Angle | 0.000 |
| Series | VSM890-12 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1870 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | SNHX1202PNSRMM |
| Iso Code | SNHX120408PNSRMM |
| Manufacturers Catalog Number | SNHX1202PNSRMM |
| Cutter Series Compatibility | VSM890 SN12 |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Square |
| Length of Cut (mm) | 12.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiAlN |
| Included Angle Degree | 90 |
| Length | 12.00 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Width (Mm - 2 Decimals) | 12.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1813 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4724 |
