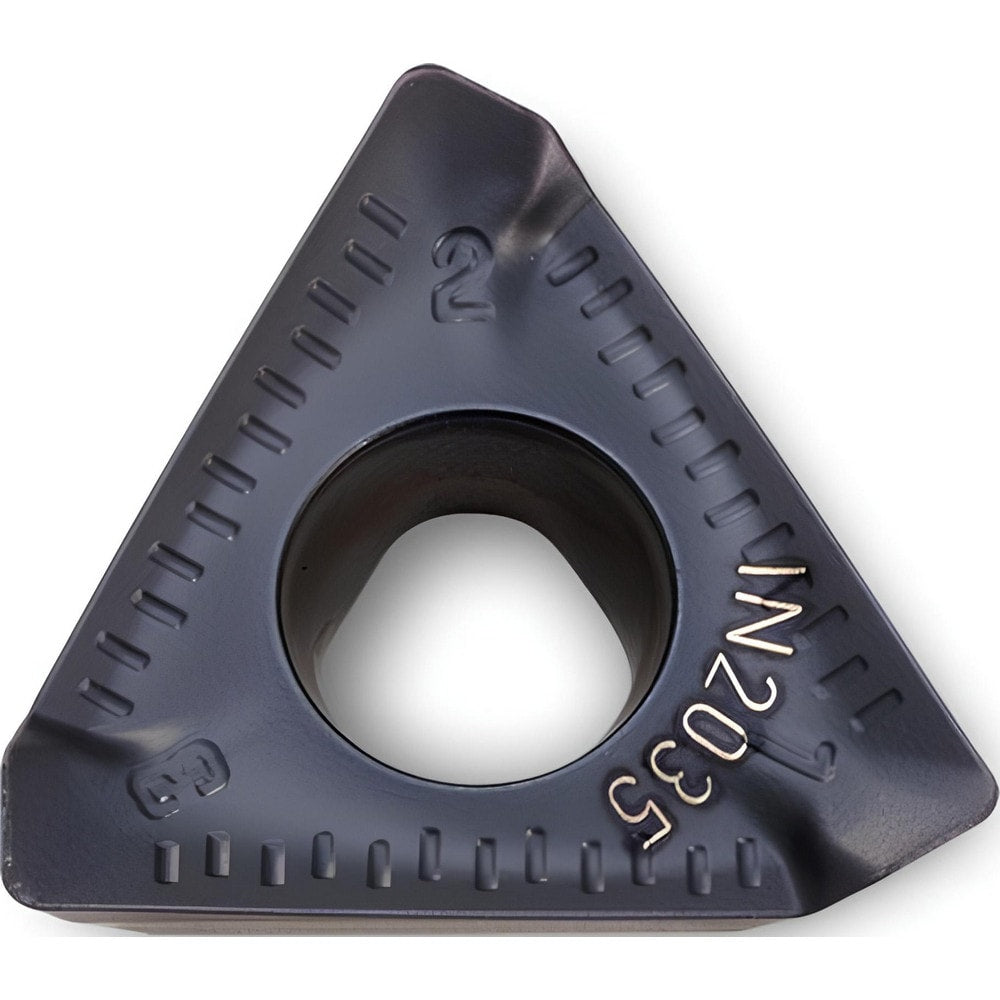

Brand: Ingersoll Cutting Tools / Part #: 5615065
Item #: 33222753
Brand: Ingersoll Cutting Tools
Model #: 5615065
Product Specifications
| Insert Style | THLS |
| Insert Size Code | 130608 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Inscribed Circle (Inch) | 17/32 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | THLS |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | THLS130608FR |
| Manufacturers Catalog Number | THLS130608FR IN2505 |
| Cutter Series Compatibility | KJ5P; 1KJ1P; KJ6P |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Triangle |
| Length of Cut (mm) | 14.9900 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 60 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2360 |
| Multi-Use Tool | No |
