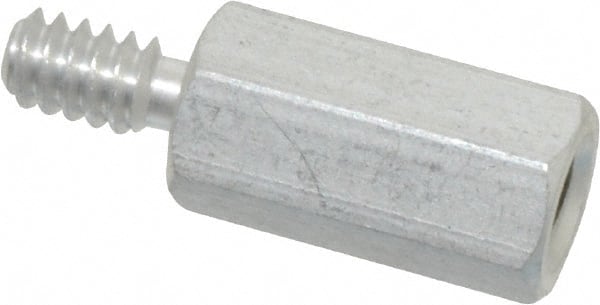

Electro Hardware - M6x1, 28.7mm OAL, 13mm Across Flats, Aluminum Male/Female Hex Circuit Board Standoff
Item #: 95759056
Brand: Electro Hardware
Model #: MMF2723M06F16M6
Features and Benefits
Circuit board standoffs with male/female threads have one externally threaded end and one internally threaded end. The female end accepts male fasteners or other standoffs.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Thread Type | Male/Female |
| Material | Aluminum |
| System of Measurement | Metric |
| Body Shape | Hex |
| Overall Length (mm) | 28.70 |
| Thread Style | Fully Threaded |
| Thread Size | M6x1 |
| Width Across Flats (mm) | 13.00 |
| Finish/Coating | Uncoated |
| Body Length (mm) | 16.00 |
| Thread Length (mm) | 12.7 |
| Thread Depth (mm) | 10.20 |
| Material Grade | T-3 |
