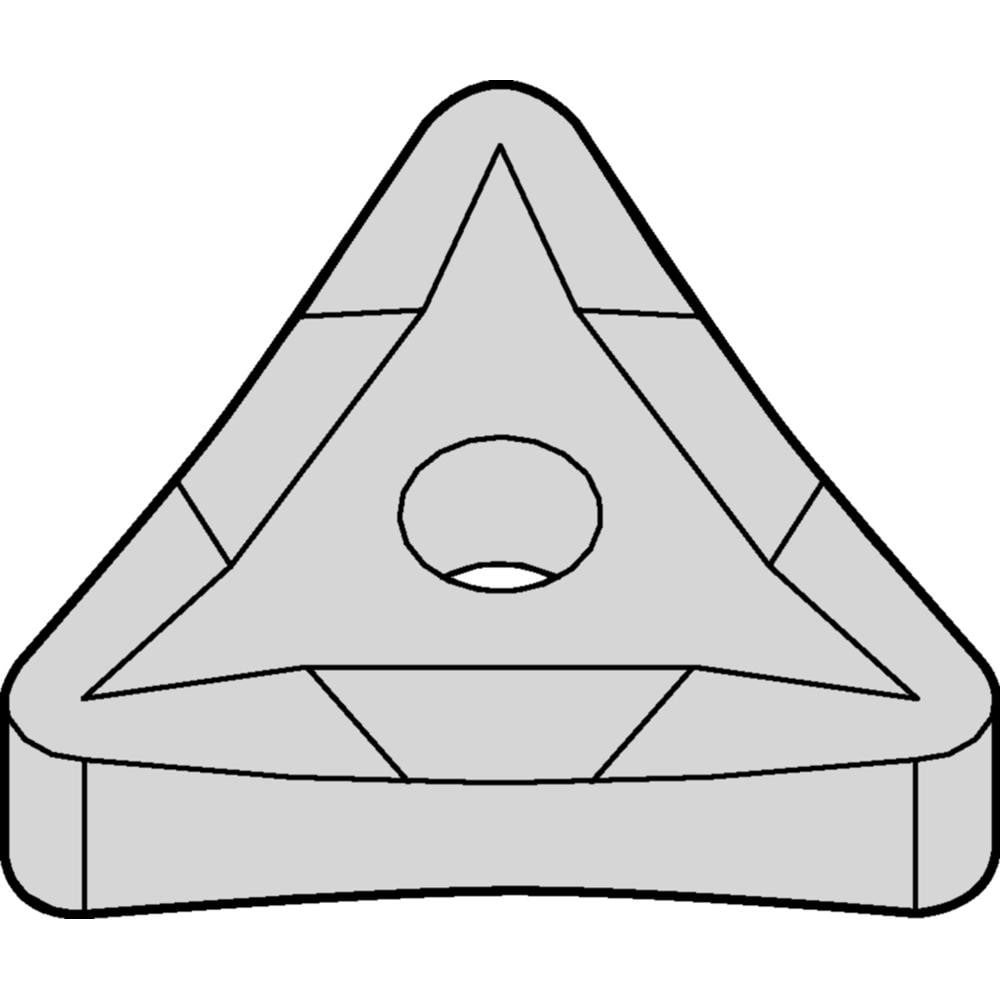

Brand: Widia / Part #: 4172624
Item #: 95621165
Brand: Widia
Model #: 4172624
Product Specifications
| Insert Style | TNMP |
| Insert Shape Code | T |
| Insert Size Code | 333 |
| Insert Shape | Triangle |
| Coating/Finish | AlTiN |
| Manufacturer Grade | WS25PT |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.3248 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | N |
| Tolerance Code | M |
| Included Angle | 60.00 |
| Relief Angle | 0.000 |
| Series | TNMP |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6496 |
| Number Of Cutting Edges | 6 |
| Secondary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Secondary Workpiece Material Code | S; M |
| Ansi Code | TNMP333 |
| Iso Code | TNMP160412 |
| Manufacturers Catalog Number | TNMP333 |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | None |
| Style | TNMP |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
