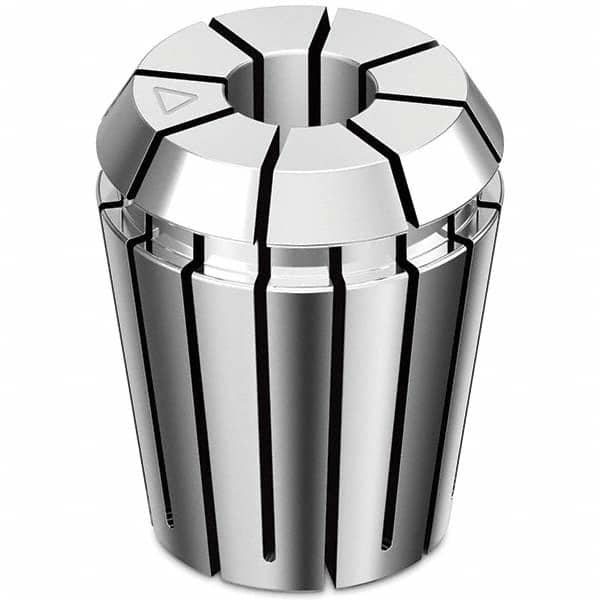

Rego-Fix - Standard 4 to 5mm ER16 Collet
Item #: 73096018
Brand: Rego-Fix
Model #: 1116.05000
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER16 |
| Size Range (Decimal Inch) | 4.00-5.00 |
| Size Range (Inch) | 4.00-5.00 |
| Size Range (mm) | 4.00-5.00 |
| TIR (Decimal Inch) | 0.000400 |
| Minimum Collet Capacity (mm) | 4.00 |
| Maximum Collet Capacity (mm) | 5.00 |
| Overall Length (mm) | 27.50 |
| Overall Diameter (mm) | 17.00 |
| Number of Pieces | 1 |
