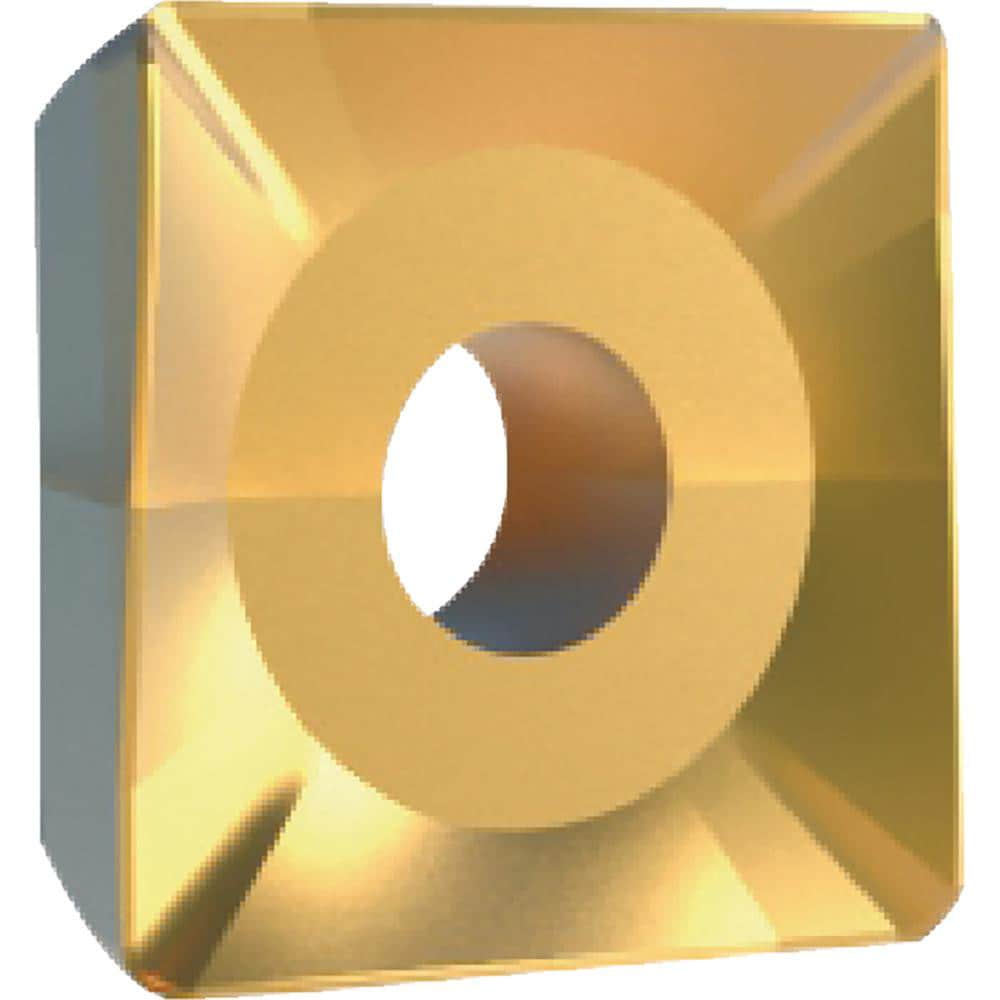

Brand: Widia / Part #: 4145063

Brand: Widia / Part #: 4145063


Item #: 94100286
Brand: Widia
Model #: 4145063

Product Specifications

Insert Style SDMX
Insert Size Code 1204
Insert Size 43
Insert Material Carbide
Width (Inch) 1/2
Manufacturer Grade TN6520
Length (Inch) 1/2
Thickness (Inch) 3/16
Inscribed Circle (Inch) 1/2
Inscribed Circle (Decimal Inch) 0.5000
Corner Radius (Decimal Inch) 0.0625
Corner Radius (Inch) 1/16
Insert Hand Right Hand
Relief Angle 15.000
Series M690
Coating Process PVD
Hole Diameter (Decimal Inch) 0.1730
Maximum Depth of Cut (Decimal Inch) 0.5000
Number Of Cutting Edges 4
Insert Shape Square
Rake Positive
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Ansi Code SDMX434RMM
Iso Code SDMX120416RMM
Manufacturers Catalog Number SDMX434RMM
Cutter Series Compatibility M690 SD1204 IN SDMX
Chip Breaker MM
Cutting Direction Right Hand
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Square
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Single
Coating/Finish TiAlN
Included Angle Degree 90
Width (Decimal Inch - 4 Decimals) 0.5000
Thickness (Decimal Inch - 4 Decimals) 0.1875
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.5000
$ 15.77
