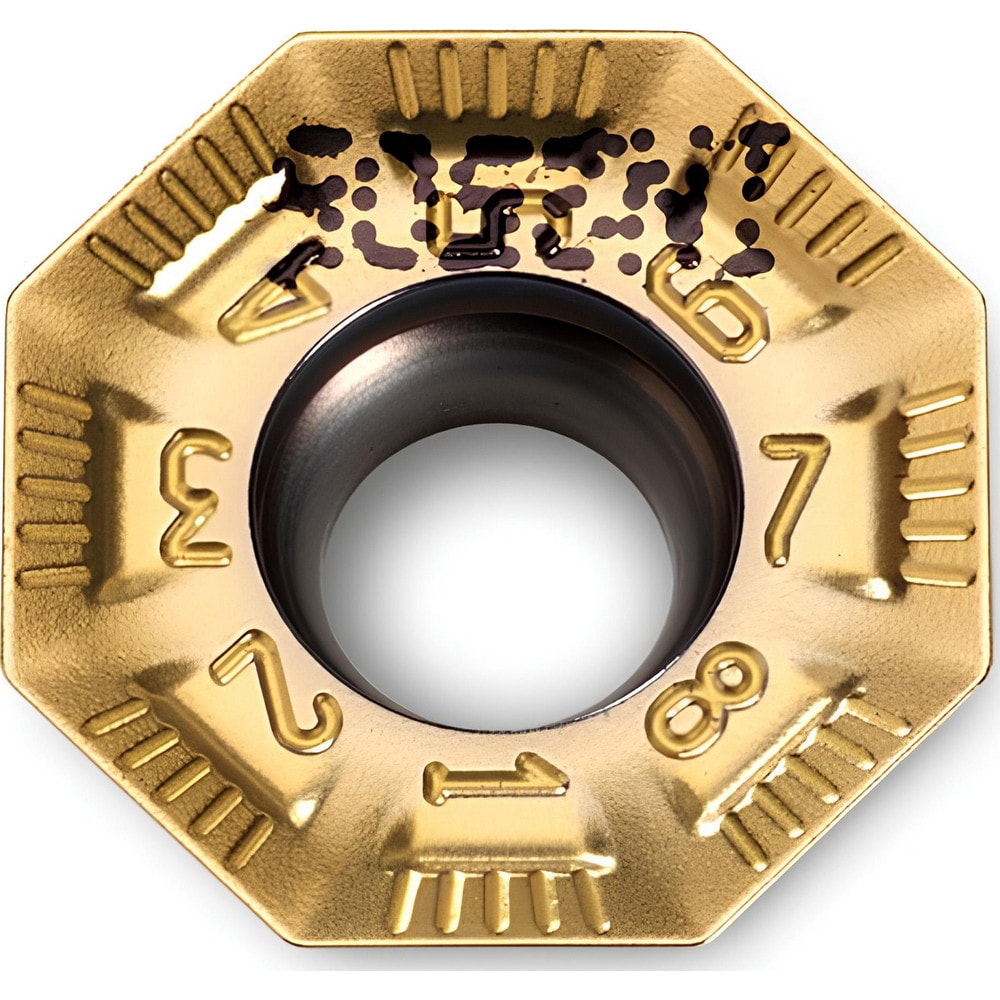

Brand: Ingersoll Cutting Tools / Part #: 5870230
Item #: 98867930
Brand: Ingersoll Cutting Tools
Model #: 5870230
Product Specifications
| Insert Style | OFMT |
| Insert Size Code | 05 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Inscribed Circle (Decimal Inch) | 0.4960 |
| Corner Radius (Decimal Inch) | 0.0240 |
| Insert Hand | Neutral |
| Series | OFMT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2480 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Octagon |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | OFMT05T3AFN-HR |
| Rake Angle | 25.000 |
| Manufacturers Catalog Number | OFMT05T3AFN-HR IN2505 |
| Cutter Series Compatibility | 5N6H; 15N1H |
| Chip Breaker | HR |
| Cutting Direction | Neutral |
| Shape | Octagon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.4960 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1460 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4960 |
