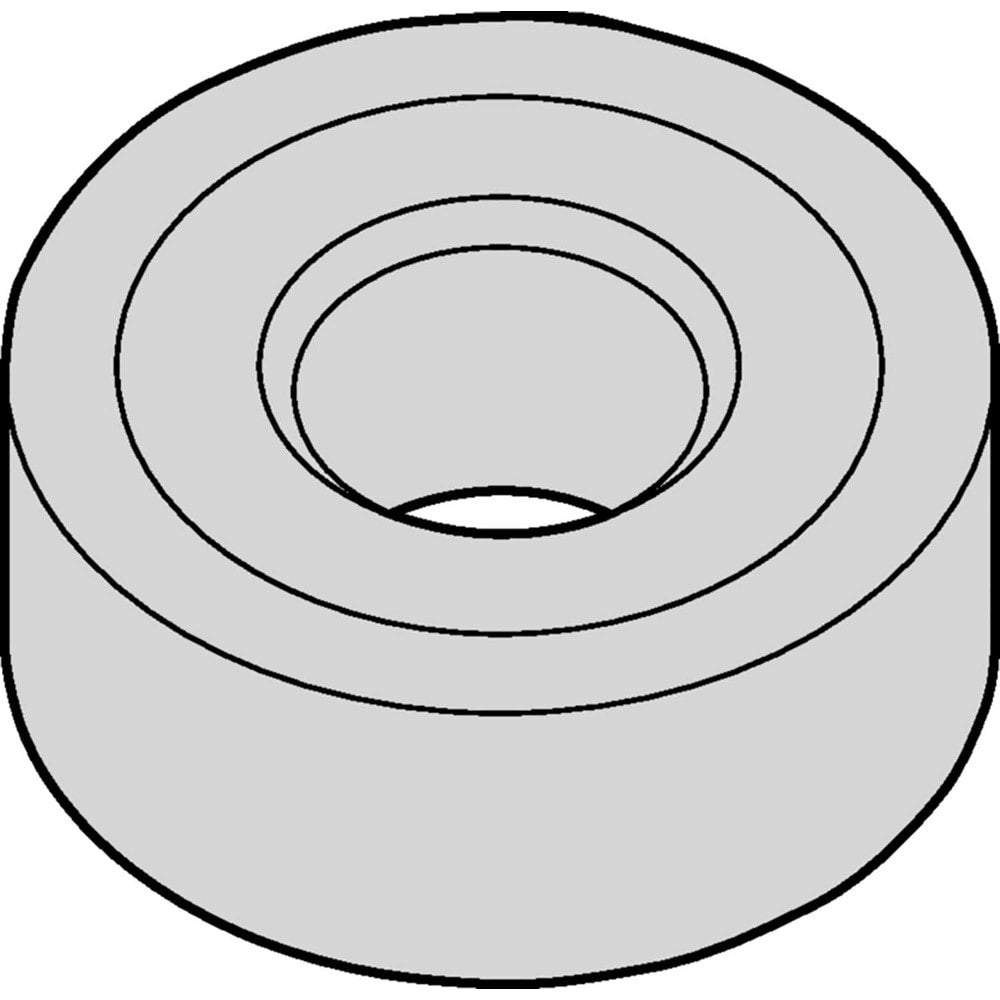

Brand: Widia / Part #: 4171530
Item #: 94061371
Brand: Widia
Model #: 4171530
Product Specifications
| Insert Style | RNMG |
| Insert Shape Code | R |
| Insert Size Code | 32 |
| Insert Shape | Round |
| Coating/Finish | TiCN; TiN; ZrCN; Al2O3 |
| Manufacturer Grade | WP25CT |
| Corner Radius (Decimal Inch) | 0.1875 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (mm) | 4.77 |
| Maximum Depth of Cut (Decimal Inch) | 0.1878 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Clearance Code | N |
| Tolerance Code | M |
| Relief Angle | 0.000 |
| Series | RNMG |
| Coating Process | MTCVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3750 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | RNMG32RH |
| Iso Code | RNMG090300RH |
| Manufacturers Catalog Number | RNMG32RH |
| Cutting Direction | Neutral |
| Coating Classification | Multi-Layered CVD |
| Chip Breaker | RH |
| Style | RNMG |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | External Turning; Internal Turning |
