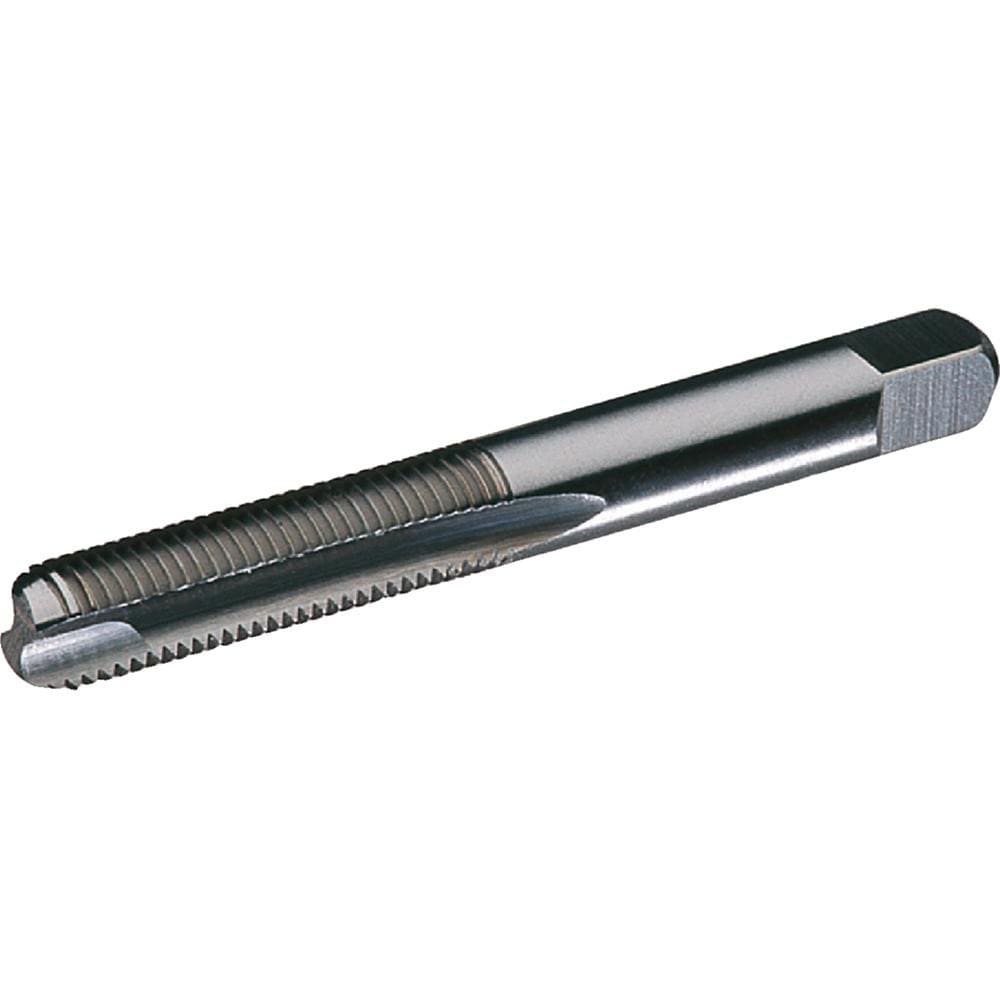

Brand: Widia / Part #: 2866726

Brand: Widia / Part #: 2866726


Item #: 93088151
Brand: Widia
Model #: 2866726

Product Specifications

Thread Size (Inch) #10-32
Number Of Flutes 2
Chamfer Bottoming
Thread Limit H3
Class Of Fit H3
Coating/Finish Uncoated
Threads per Inch 32
Material High Speed Steel
Coolant Through No
Thread Direction Right Hand
Thread Depth (Decimal Inch) 0.8750
Thread Pitch (Decimal Inch) 0.0313
Thread Standard UNC
Thread Length (Decimal Inch) 0.8750
Overall Length (Decimal Inch) 2.3750
Shank Diameter (Decimal Inch) 0.1940
Square Size (Decimal Inch) 0.1520
Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Series 5302
$ 9.16
