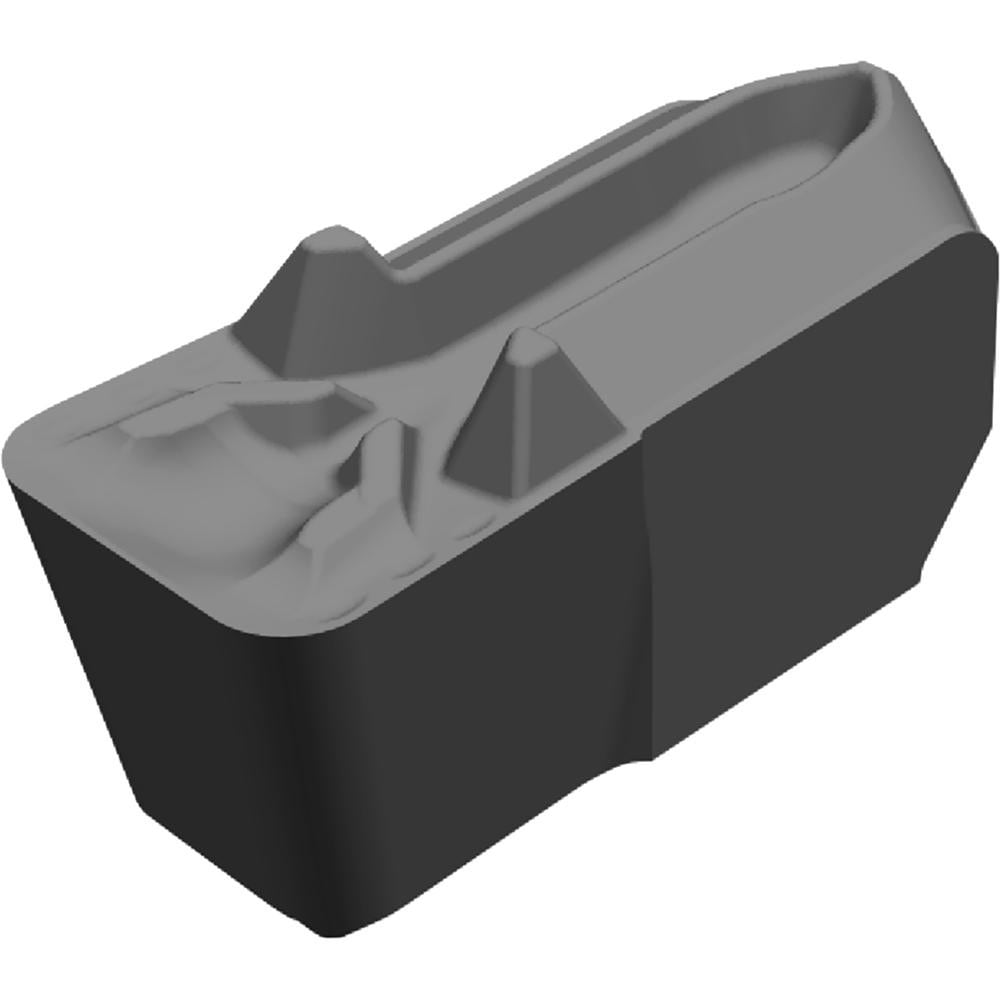

Brand: Widia / Part #: 6686433
Item #: 15083165
Brand: Widia
Model #: 6686433
Product Specifications
| Insert Style | WGC |
| Insert Size Code | 4 |
| Insert Size | 4 |
| Insert Material | Carbide |
| Manufacturer Grade | WU25PT |
| Cutting Width (Decimal Inch) | 0.1875 |
| Cutting Width (mm) | 4.760 |
| Cutting Width (Inch) | 3/16 |
| Maximum Depth of Cut (Decimal Inch) | 0.1059 |
| Maximum Depth of Cut (mm) | 2.69 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 2.69 |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.1059 |
| Corner Radius (mm) | 0.32 |
| Corner Radius (Decimal Inch) | 0.0126 |
| Lead Angle | 10.000 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | WGC |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3993 |
| Overall Length (mm) | 10.1400 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; H; K; M; N |
| Ansi Code | WG188I04P08PT |
| Iso Code | WG188I04P08PT |
| Relief Angle | 10 |
| Maximum Corner Radius (Decimal Inch) | 0.0126 |
| Manufacturers Catalog Number | WG188I04P08PT |
| Overall Width (Inch) | 9/64 |
| Insert Thickness (Decimal Inch) | 0.1739 |
| Minimum Groove Width (mm) | 4.76 |
| Type | WGC Groove And Turn Insert |
| Maximum Groove Width (mm) | 4.76 |
| Minimum Insert Width (mm) | 3.58 |
| Chip Breaker | PT |
| Insert Seat Size | 4 |
| Style | WGC Groove And Turn Insert |
| Insert Height (Decimal Inch) | 0.1739 |
| Full Radius | No |
| Coating Classification | PVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Overall Width | 3.5800 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1407 |
| Coating/Finish | TiAIN |
| Number Of Cutting Edges | 1 |
| Single Or Double End | Single |
| Groove Width (mm) | 4.76 |
| For Use With | Grooving |
| Insert Thickness | 4.42 |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.0000 |
