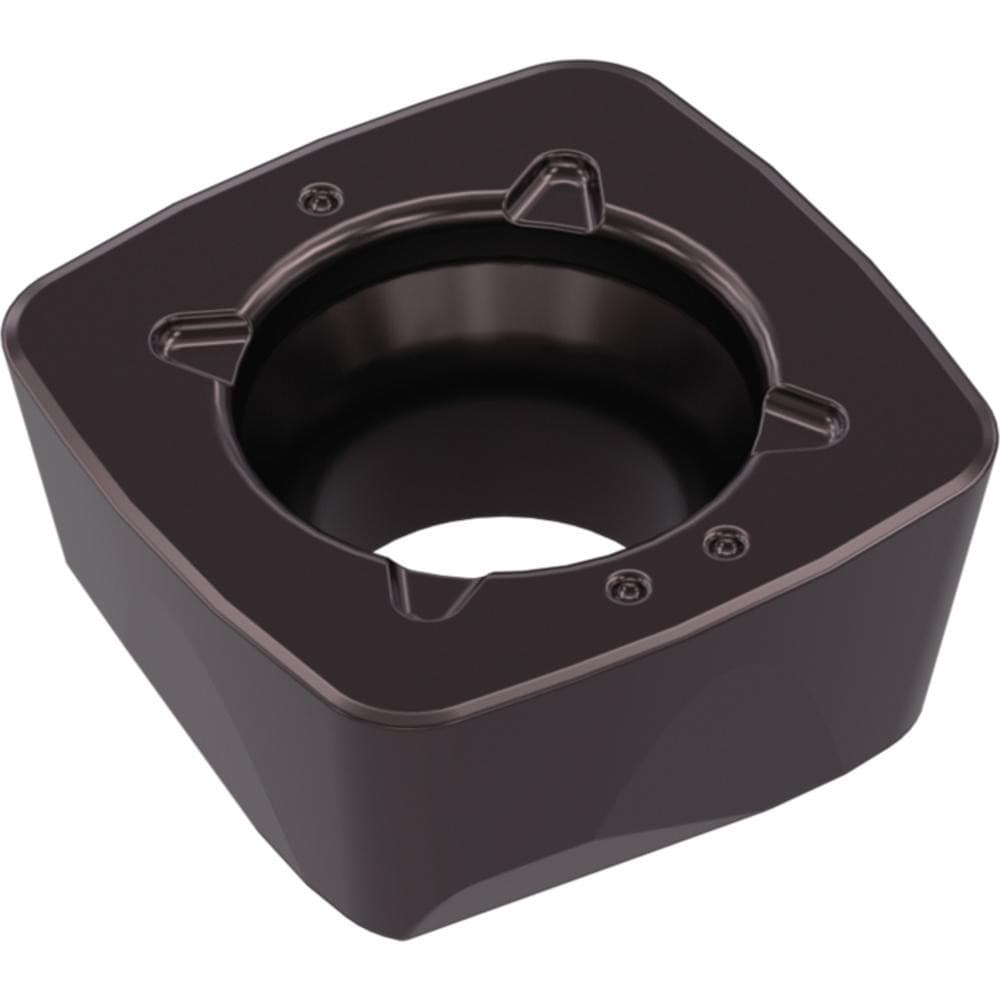

Brand: Widia / Part #: 6595770
Item #: 94100138
Brand: Widia
Model #: 6595770
Product Specifications
| Insert Style | XPPW |
| Insert Size Code | 0703 |
| Insert Size | 07 |
| Insert Material | Carbide |
| Manufacturer Grade | WP40PM |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Decimal Inch) | 0.2875 |
| Corner Radius (Decimal Inch) | 0.0393 |
| Corner Radius (mm) | 1.00 |
| Insert Hand | Right Hand |
| Relief Angle | 11.000 |
| Series | VXF |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Maximum Depth of Cut (Decimal Inch) | 0.2875 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | XPPW070310SRMH |
| Iso Code | XPPW070310SRMH |
| Manufacturers Catalog Number | XPPW070310SRMH |
| Cutter Series Compatibility | VXF XP07 |
| Chip Breaker | MH |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlCrN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2875 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2875 |
