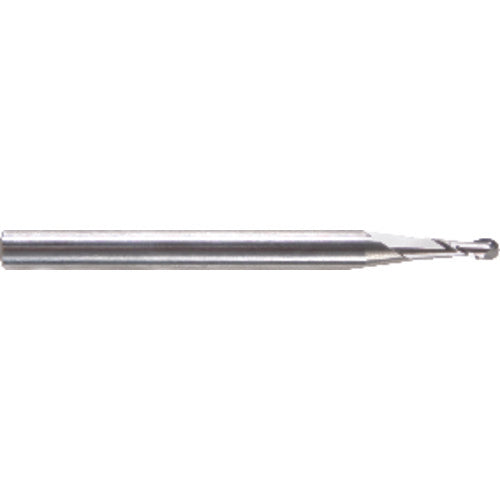

0.12″ Dia. × 1/8″ Shank × 0.18″ DOC × 1-1/2″ OAL, Carbide 2 Flute, 30° Helix, Ballnose End Mill Series/List #5915
Item #: MT3152477
Brand: Morse Cutting Tools
Model #: 52477
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.120″ |
| Tool Type | Miniture End Mill |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Length Group | Stub |
| Depth of Cut Maximum (APMX) | 0.18″ |
| End Shape | Ball |
| Overall Length (OAL) | 1-1/2″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Style | Finishing |
| Coating | Uncoated |
| Decimal Equivalent | 0.120″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | 5907 |
| Shank Type | Plain |
| Center Cutting | Yes |
