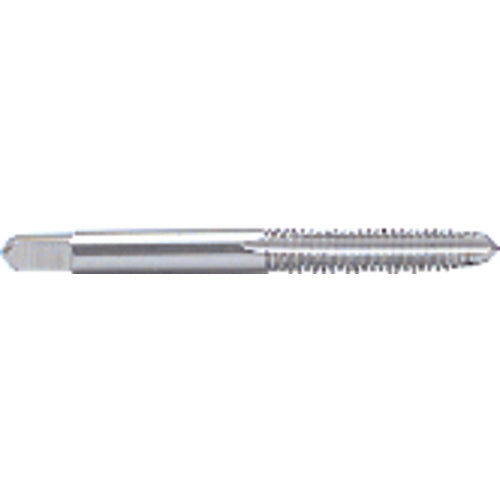

7/16″ NC, 14 TPI, 4 -Flute, H5 Plug Straight Flute Tap Series/List #2046
Item #: MT3732442
Brand: Morse Cutting Tools
Model #: 32442
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/16″ |
| Chamfer | 3 to 5 Threads |
| Threads per Inch (TPI) | 14 |
| Coating | Bright |
| Thread Standard | NC |
| Flute Type | Straight |
| Overall Length (OAL) | 3-5/32″ |
| End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 1-7/16″ |
| Style | Plug |
| Flute Count (NOF) | 4 |
| Measurement Type | Fractional |
| Cutting Edge Material | HSS |
| Series/List # | 2046 |
| Thread Tolerance Class (TCTR) | H5 |
| Thread Size | 7/16″ - 14 |
| Tool Type | General Purpose Tap |
