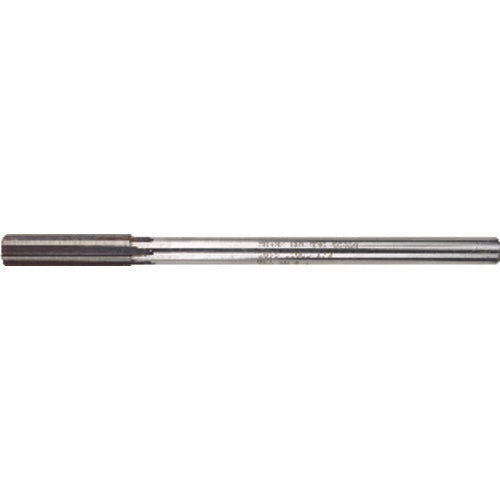

13/64″ Dia. 6-Flute, Round Shank, Straight Flute, HSS, 5″ OAL Chucking Reamer Series/List #1655
Item #: MT5022169
Brand: Morse Cutting Tools
Model #: 22169
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 13/64″ |
| Cutting Edge Material | HSS |
| Usable Length (LU) | 1-1/4″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.1945″ |
| Flute Type | Straight |
| Flute Count (NOF) | 6 |
| Length Chip Flute (LCF) | 1-1/4″ |
| Overall Length (OAL) | 5″ |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
| Series/List # | 1655 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Decimal Equivalent | 0.2031″ |
