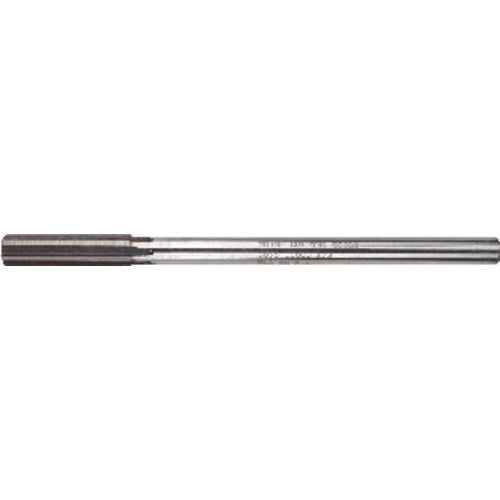

3/16″ Dia. 6-Flute, Round Shank, Straight Flute, HSSCo, 4-1/2″ OAL Chucking Reamer Series/List #2655
Item #: MT5322408
Brand: Morse Cutting Tools
Model #: 22408
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Cutting Edge Material | HSSCo |
| Usable Length (LU) | 1-1/8″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.1805″ |
| Flute Type | Straight |
| Flute Count (NOF) | 6 |
| Length Chip Flute (LCF) | 1-1/8″ |
| Overall Length (OAL) | 4-1/2″ |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
| Series/List # | 2655 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Decimal Equivalent | 0.1875″ |
