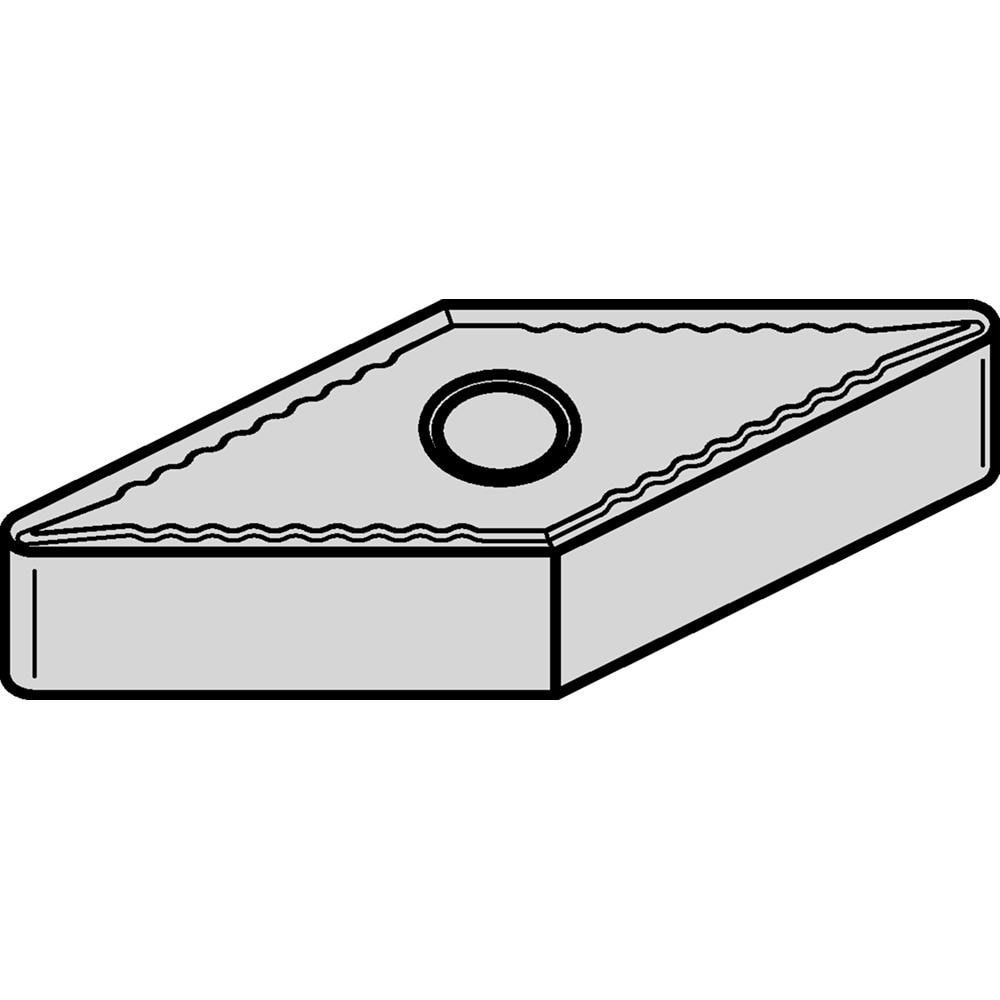

Brand: Widia / Part #: 4166288

Brand: Widia / Part #: 4166288


Item #: 95146486
Brand: Widia
Model #: 4166288

Product Specifications

Insert Style VNMG
Insert Shape Code V
Insert Size Code 332
Insert Shape Diamond
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade TN10P
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1500
Maximum Depth of Cut (Decimal Inch) 0.3269
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 35.00
Relief Angle 0.000
Series VNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6538
Number Of Cutting Edges 4
Secondary Workpiece Material Cast Iron; Steel
Secondary Workpiece Material Code P; K
Ansi Code VNMG3322P
Iso Code VNMG1604082P
Manufacturers Catalog Number VNMG3322P
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 2P
Style VNMG
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$ 10.84
