Brand: Widia / Part #: 4166430

Brand: Widia / Part #: 4166430


Item #: 93326445
Brand: Widia
Model #: 4166430

Product Specifications

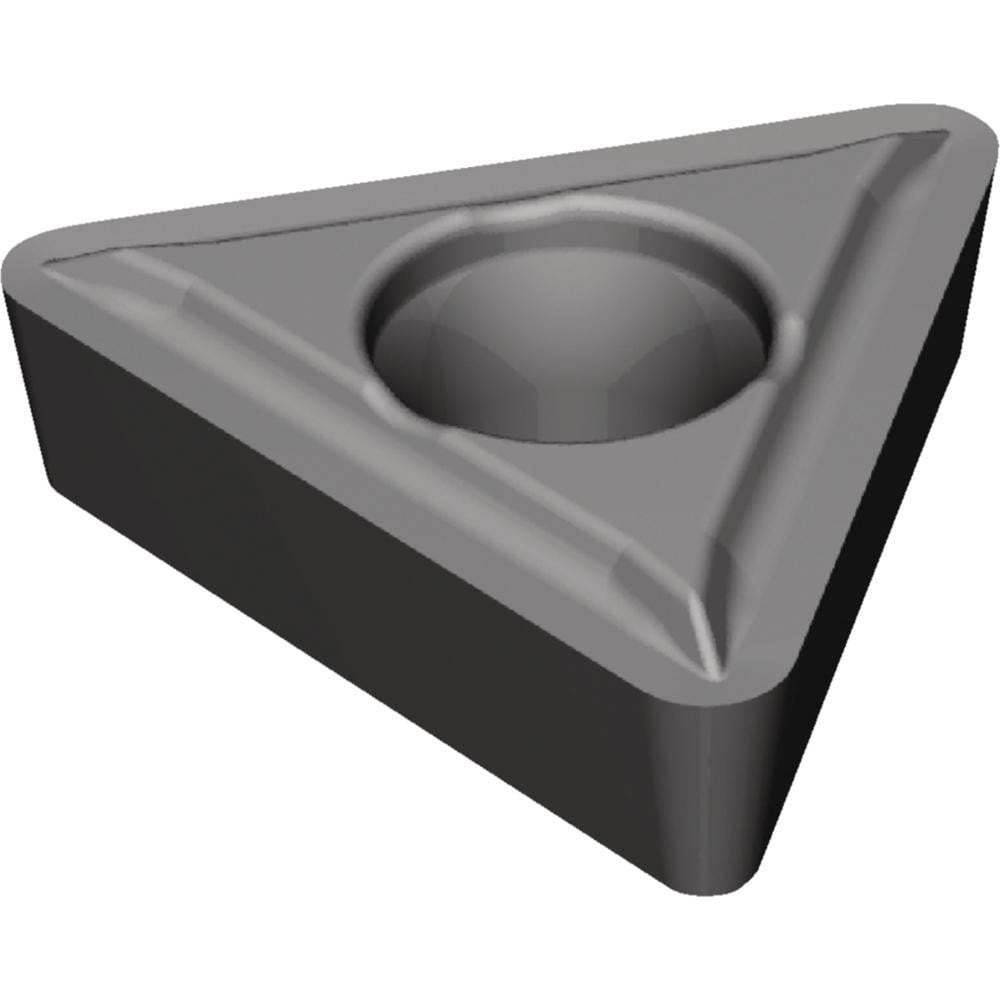

Insert Style TCMT
Insert Shape Code T
Insert Size Code 3251
Insert Shape Triangle
Coating/Finish TiN; TiAlN
Manufacturer Grade TN10U
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1732
Maximum Depth of Cut (Decimal Inch) 0.3248
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1563
Clearance Code C
Tolerance Code M
Included Angle 60.00
Relief Angle 7.000
Series TCMT
Coating Process PVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.6496
Number Of Cutting Edges 3
Primary Workpiece Material Stainless Steel; Super-alloys & Titanium
Primary Workpiece Material Code S; M
Secondary Workpiece Material Steel
Secondary Workpiece Material Code P
Ansi Code TCMT32511P
Iso Code TCMT16T3041P
Manufacturers Catalog Number TCMT32511P
Cutting Direction Neutral
Coating Classification PVD
Chip Breaker 1P
Style TCMT
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$ 8.49
