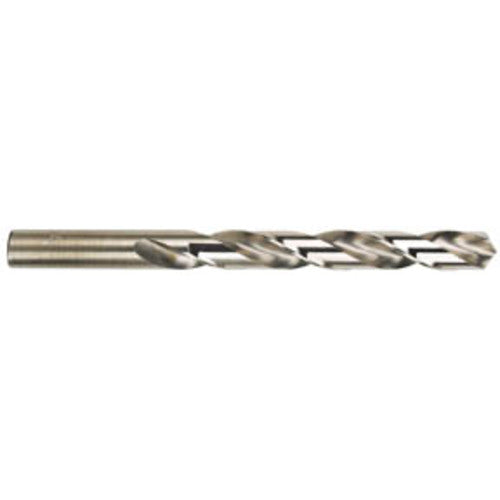

10.80mm; Jobber Length DIN 338; High Speed Steel; Black Oxide; Made In U.S.A. Series/List #1333
Item #: MT5612863
Brand: Morse Cutting Tools
Model #: 12863
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 10.8 mm |
| Cutting Depth | 94 mm |
| Decimal Equivalent | 0.4252 |
| Flute Length | 94 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.8 mm |
| Point Shape | Standard |
| Measurement Type | Metric |
| Shank Type | Straight |
| Angle | 118 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10.8 mm |
| Cutting Edge Material | HSS |
| Shape | General Purpose |
| Flute Type | Standard |
| Tool Radius | 118 Degrees |
| Coating | Black Oxide |
| Series/List # | 1333 |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 5-1/2″ |
