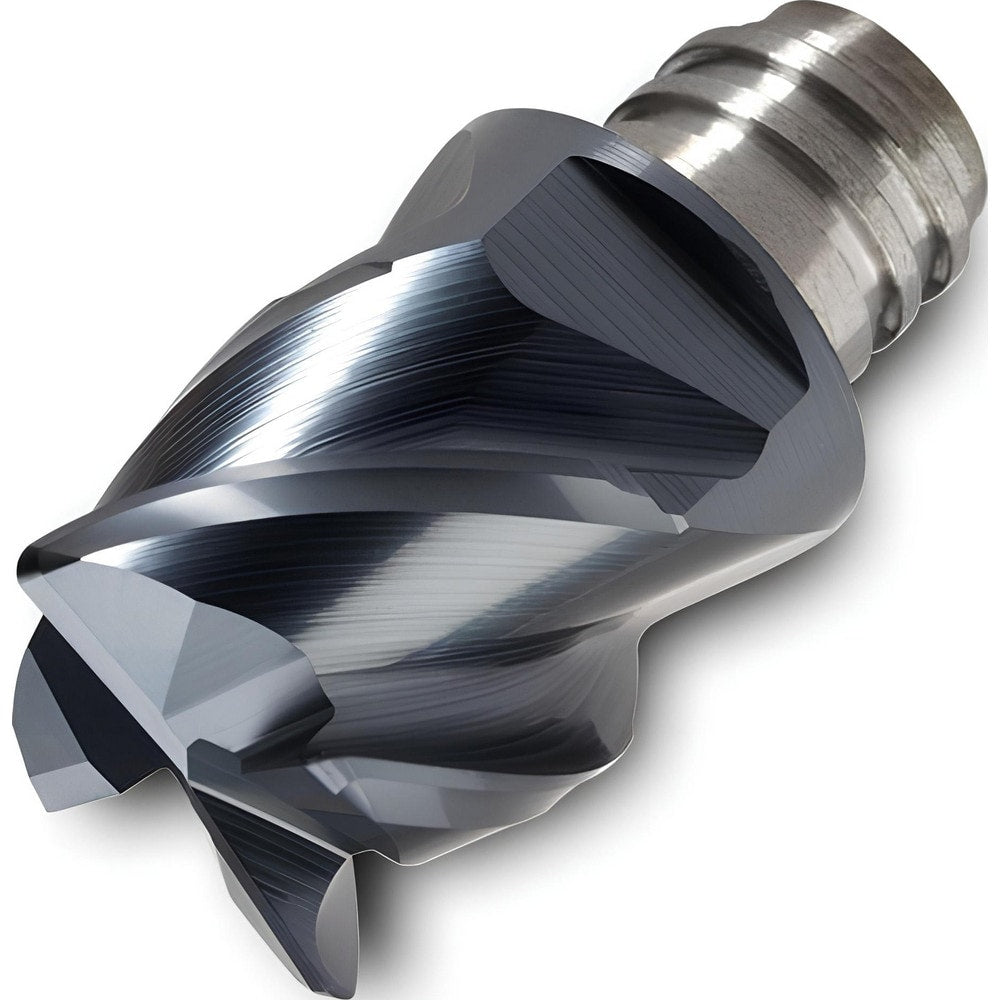

Brand: Ingersoll Cutting Tools / Part #: 5840519
Item #: 94092525
Brand: Ingersoll Cutting Tools
Model #: 5840519
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (mm) | 15.88 |
| Length of Cut (mm) | 11.9400 |
| Connection Type | T10 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | Center Cutting |
| Flute Type | Helical |
| Helix Angle | 45 |
| Helix Style | High |
| Maximum Helix Angle | 45 |
| Minimum Helix Angle | 45 |
| Series/List | 47J |
| Variable Helix | No |
| Pitch | Normal |
| End Type | Square End |
| Chipbreaker | No |
| Shank Type | Modular Connection |
| Extended Reach | NonExtendedReach |
| Single Or Double End | Single |
| Manufacturers Grade | IN2005 |
| Material Application | Superalloy; Stainless Steel; Cast Iron; Titanium; Hard Steel; Steel |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4700 |
| Variable Index | No |
| Manufacturers Catalog Number | 47J-6247TRRD08 |
| Number Of Flutes | 4 |
| Finish Coating | TiAlN |
