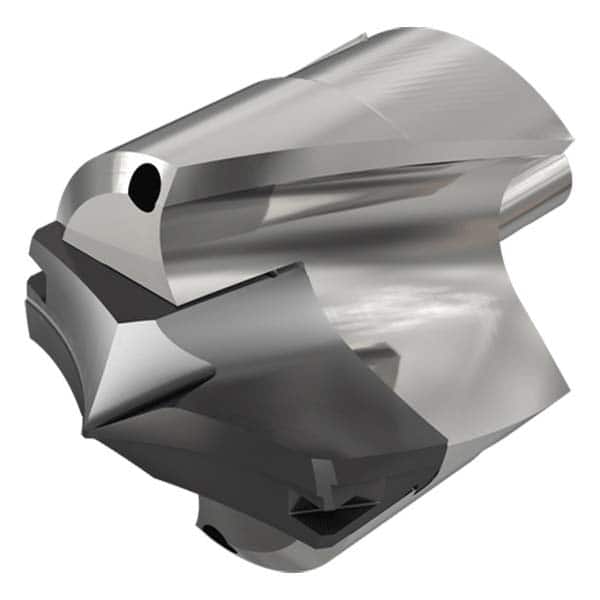

Iscar - Replaceable-Tip Drills Series: ModuDrill Minimum Drill Diameter (mm): 35.00
Item #: 14345581
Brand: Iscar
Model #: 3335854
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
Product Specifications
Replaceable-Tip Drills; Series: ModuDrill ; Minimum Drill Diameter (mm): 35.00 ; Minimum Drill Diameter (Decimal Inch): 1.3780 ; Maximum Drill Diameter (mm): 35.90 ; Maximum Drill Diameter (Decimal Inch): 1.4134 ; Drill Depth by Diameter Ratio: 1xD
| Series | ModuDrill |
| Minimum Drill Diameter (mm) | 35.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.3780 |
| Maximum Drill Diameter (mm) | 35.90 |
| Maximum Drill Diameter (Decimal Inch) | 1.4134 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 1.4646 |
| Maximum Drill Depth (mm) | 37.20 |
| Shank Diameter (mm) | 6.7000 |
| Insert Style | HFP |
| Insert Seat Size | 35 |
| Toolholder Style | DFN |
| Through Coolant | Yes |
| Shank Type | Modular Connection |
| Tip Length (mm) | 7.65 |
| Tip Length (Decimal Inch) | 0.3012 |
| Body Length (mm) | 37.200 |
| Body Length (Decimal Inch) | 1.4646 |
| Overall Length (mm) | 37.2000 |
| Overall Length (Decimal Inch) | 1.46460 |
| Toolholder Material | Steel (Shank) |
| Shank Length (mm) | 10.700 |
| Shank Length (Decimal Inch) | 0.4213 |
| Shank Type | Modular Connection |
| Overall Length (mm) | 37.2000 |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
