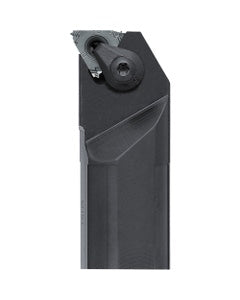

CINR 3025S16, Indexable Internal Threading Toolholder
Item #: KY96THC04092
Brand: Kyocera Precision Tools
Model #: THC04092
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Application | Internal Threading |
| Minimum Bore Diameter (DMIN) | 30 mm |
| Functional Width (WF) | 15 mm |
| Head Length (LH) | 36 mm |
| Master Insert Identification (MIID) | 16IR... |
| Overall Length (OAL) | 200 mm |
| Body Material | Steel |
| Shank Height (H) | 23 mm |
| Series/List # | LDT |
| Coolant Supply Property (CSP) | External |
| Tool Type | Internal Threading Tool Holder |
| Cutting Direction (HAND) | Right Hand |
| Measurement Type | Metric |
