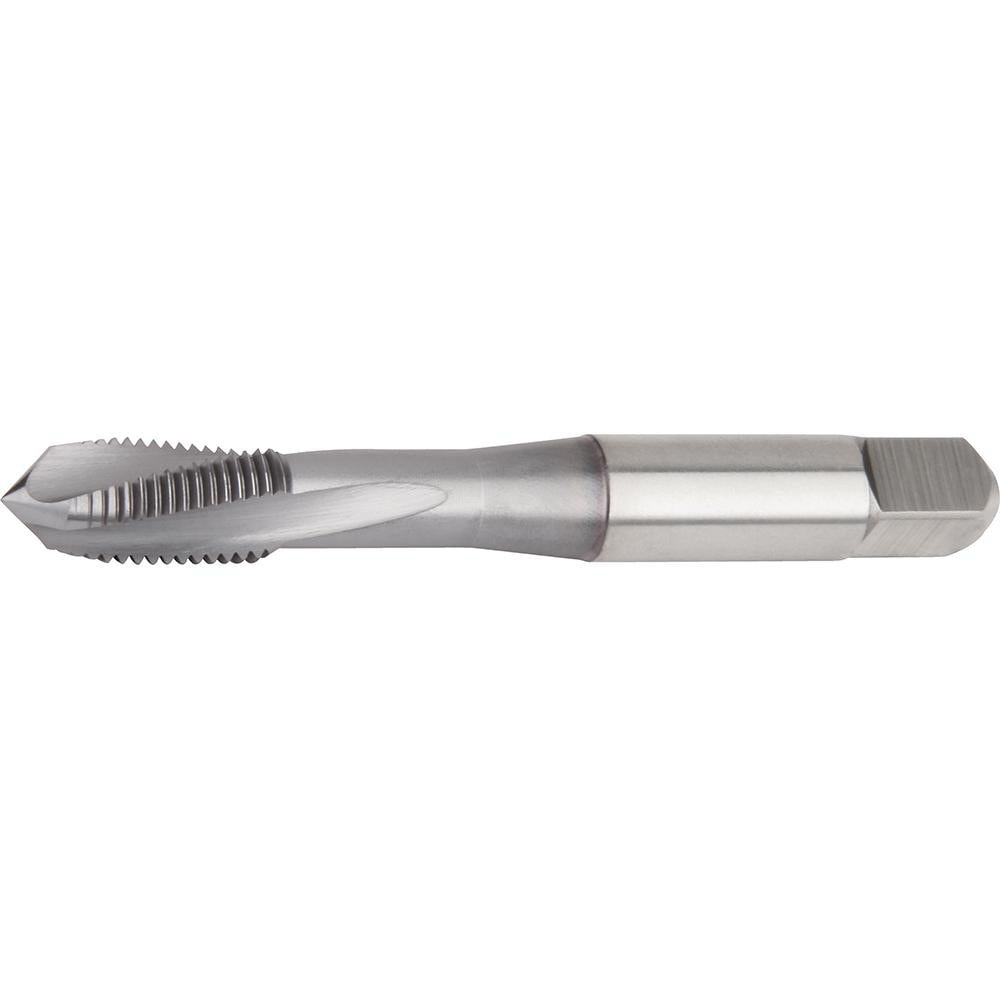

Brand: Widia / Part #: 5705073
Item #: 17203498
Brand: Widia
Model #: 5705073
Product Specifications
| Thread Size (mm) | M2.5x0.45 |
| Chamfer | Plug |
| Thread Limit | D3 |
| Class Of Fit | 6H |
| Number Of Flutes | 2 |
| Material | Powdered Metal |
| Threads per Inch | 56 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | Oxide; Nitride |
| Thread Depth (mm) | 14.30 |
| Coolant Through | No |
| Thread Length (mm) | 12.70 |
| Overall Length (mm) | 46.1000 |
| Thread Pitch (mm) | 0.45 |
| Thread Standard | Metric |
| Material Grade | WS39MG |
| Shank Diameter (mm) | 3.5800 |
| Square Length (mm) | 4.80 |
| Square Size (mm) | 2.74 |
| Material Application | High-Temperature Alloy |
| Series | GT90 |
