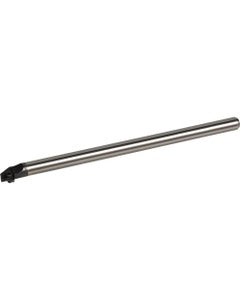

C06JSTZBR06085 Right-Hand, Positive Rake, Boring Bar
Item #: KY96THC08370
Brand: Kyocera Precision Tools
Model #: THC08370
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 110 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 110 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 5 mm |
| Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 5.4 mm |
| Series/List # | GPBB |
| Shank Length (LS) | 105 mm |
| Style | C...STZB |
| Functional Width (WF) | 5.1 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | | TBGT121 | TBMT121 | TBGW121 | TBMT121 | |
| Weight of Item (WT) | 0.1276 |
| Minimum Bore Diameter (DMIN) | 8.5 mm |
