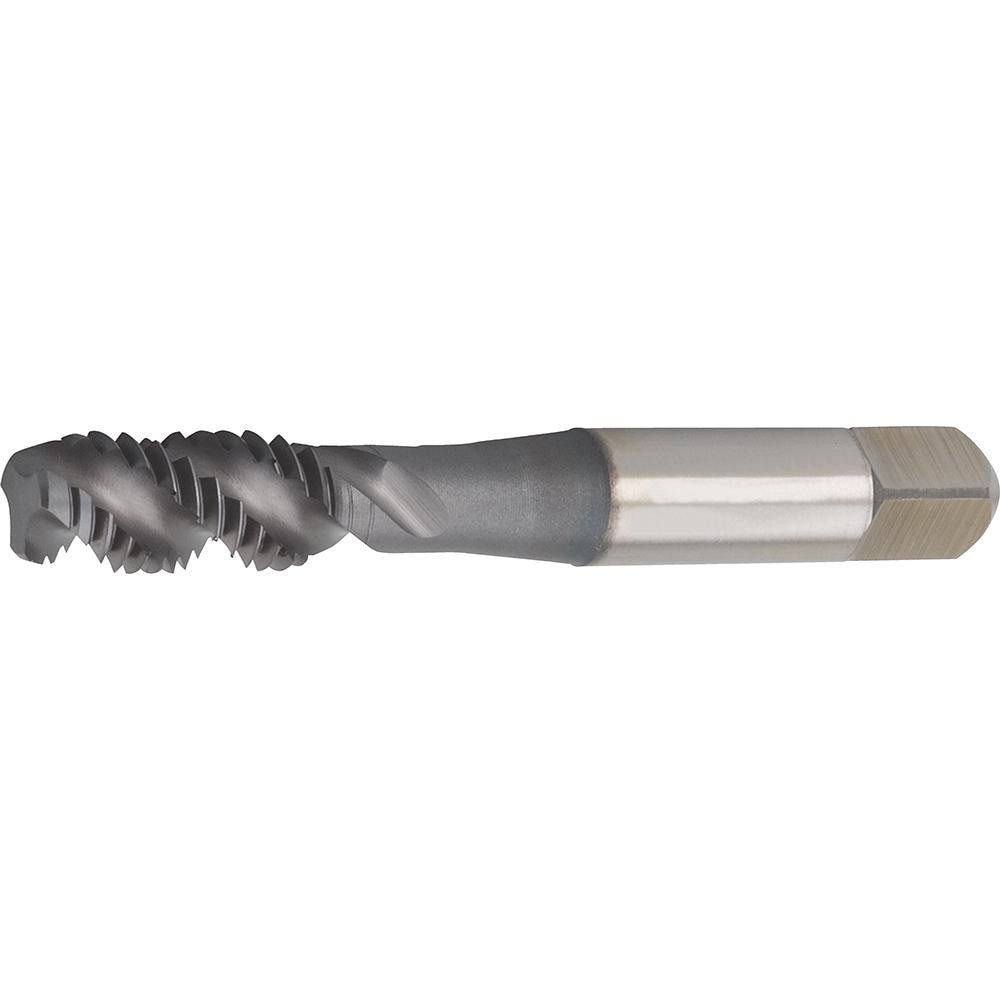

Brand: Widia / Part #: 6140201
Item #: 97328017
Brand: Widia
Model #: 6140201
Product Specifications
| Thread Size (Inch) | 5/16-18 |
| Chamfer | Modified Bottoming |
| Thread Limit | H7 |
| Class Of Fit | 2BX |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 18 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Black Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.6900 |
| Overall Length (Decimal Inch) | 2.7200 |
| Thread Depth (Decimal Inch) | 1.1300 |
| Thread Pitch (Decimal Inch) | 0.0556 |
| Thread Standard | UNC |
| Material Grade | WP49EG |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Size (Decimal Inch) | 0.2360 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
